SUN HYDRAULICS
CNBCXDN
$33.06 USD
- SUN HYDRAULICS
- Material:CNBCXDN
- Model:CNBC-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXDN (CNBCXDN) is a two-port, direct-acting check valve designed for high-pressure hydraulic applications. This model allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, effectively managing fluid control in various systems. The specified orifice diameter can range from .016 to .062 inches (0.4 to 1.6 mm), which is clearly stamped on one of the cartridge's hex faces for easy identification. Constructed with Sun's floating style design, the CNBCXDN minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, ensuring reliable and consistent operation. This model is capable of handling a maximum operating pressure of 5000 psi (350 bar) at both ports and has a flow capacity of up to 7.5 gpm (30 L/min). It fits within a T-16A cavity and requires an installation torque between 20 and 25 lbf ft (27 - 33 Nm). The valve itself weighs approximately .20 lb (0.10 kg) and uses Viton seals for enhanced durability against high temperatures and chemical exposure. Ideal for applications requiring precise flow control and check functionalities under high pressures, the CNBCXDN is suitable for use in hydraulic circuits where space and reliability are critical considerations. Its robust construction and tailored orifice options make it a versatile component in industrial hydraulic systems.
The Sun Hydraulics CNBCXDN (CNBCXDN) is a two-port, direct-acting check valve designed for high-pressure hydraulic applications. This model allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, effectively managing fluid control in various systems. The specified orifice diameter can range from .016 to .062 inches (0.4 to 1.6 mm), which is clearly stamped on one of the cartridge's hex faces for easy identification. Constructed with Sun's floating style design, the CNBCXDN minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, ensuring reliable and consistent operation. This model is capable of handling a maximum operating pressure of 5000 psi (350 bar) at both ports and has a flow capacity of up to 7.5 gpm (30 L/min). It fits within a T-16A cavity and requires an installation torque between 20 and 25 lbf ft (27 - 33 Nm). The valve itself weighs approximately .20 lb (0.10 kg) and uses Viton seals for enhanced durability against high temperatures and chemical exposure. Ideal for applications requiring precise flow control and check functionalities under high pressures, the CNBCXDN is suitable for use in hydraulic circuits where space and reliability are critical considerations. Its robust construction and tailored orifice options make it a versatile component in industrial hydraulic systems.

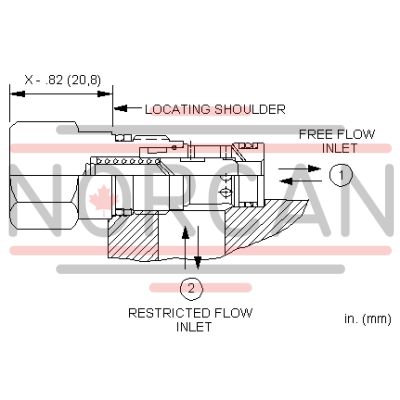

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
