SUN HYDRAULICS
CNBCXDV
$39.52 USD
- SUN HYDRAULICS
- Material:CNBCXDV
- Model:CNBC-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXDV (CNBCXDV) is a precision-engineered hydraulic component designed for versatile applications requiring reliable check valve operations. This model features a free flow from port 1 to port 2 and includes a customer-specified orifice to restrict flow from port 2 to port 1, enhancing control over fluid dynamics in hydraulic systems. The orifice range for this model spans from 0.016 to 0.062 inches (0.4 to 1.6 mm), allowing for customization based on specific system requirements. Constructed with Sun's floating style design, the CNBCXDV minimizes the potential for internal parts binding, which can occur due to excessive installation torque or variations in cavity/cartridge machining. This design innovation ensures long-term reliability and performance stability under diverse operating conditions. The valve operates effectively up to a maximum pressure of 5000 psi (350 bar) and can handle capacities up to 7.5 gpm (30 L/min). The CNBCXDV is housed in a T-16A cavity and is compatible with Viton seals, as indicated by the seal kit number 990162006, ensuring excellent resistance against high temperatures and chemical breakdowns. The model is also marked by its compact size, weighing just .20 lb (0.10 kg), and requires an installation torque ranging from 20-25 lbf ft (27-33 Nm). This valve's hex size measures at 3/4 inches (19.1 mm), facilitating easy installation and maintenance. Ideal for applications where directional control and flow regulation are crucial, the CNBCXDV serves as an essential component in advanced hydraulic systems where precision and durability are paramount.
The Sun Hydraulics CNBCXDV (CNBCXDV) is a precision-engineered hydraulic component designed for versatile applications requiring reliable check valve operations. This model features a free flow from port 1 to port 2 and includes a customer-specified orifice to restrict flow from port 2 to port 1, enhancing control over fluid dynamics in hydraulic systems. The orifice range for this model spans from 0.016 to 0.062 inches (0.4 to 1.6 mm), allowing for customization based on specific system requirements. Constructed with Sun's floating style design, the CNBCXDV minimizes the potential for internal parts binding, which can occur due to excessive installation torque or variations in cavity/cartridge machining. This design innovation ensures long-term reliability and performance stability under diverse operating conditions. The valve operates effectively up to a maximum pressure of 5000 psi (350 bar) and can handle capacities up to 7.5 gpm (30 L/min). The CNBCXDV is housed in a T-16A cavity and is compatible with Viton seals, as indicated by the seal kit number 990162006, ensuring excellent resistance against high temperatures and chemical breakdowns. The model is also marked by its compact size, weighing just .20 lb (0.10 kg), and requires an installation torque ranging from 20-25 lbf ft (27-33 Nm). This valve's hex size measures at 3/4 inches (19.1 mm), facilitating easy installation and maintenance. Ideal for applications where directional control and flow regulation are crucial, the CNBCXDV serves as an essential component in advanced hydraulic systems where precision and durability are paramount.

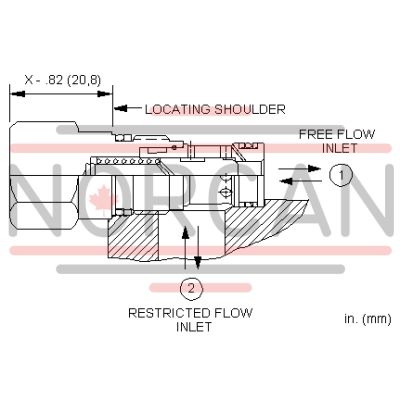

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
