The Sun Hydraulics CNBCXEN (CNBCXEN) is a precision-engineered hydraulic check valve designed for high-pressure applications, supporting a maximum operating pressure of 5000 psi (350 bar) at both ports. This model features a free flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specified orifice diameter can range between .016 and .062 inches (0.4 to 1.6 mm), and is clearly stamped on one of the cartridge's hex faces for easy identification. The CNBCXEN valve is built with Sun's floating style construction which enhances its durability and performance by minimizing potential internal parts binding. This design consideration is crucial for applications where installation torque and cartridge/cavity machining variations might otherwise compromise valve operation. It fits into a T-16A cavity and has a hex size of 3/4 inch (19.1 mm), with an installation torque requirement between 20 and 25 lbf ft (27 - 33 Nm). The valve itself weighs about .20 lb (0.10 kg), making it lightweight yet robust enough for demanding uses. This model\u2019s capacity is rated at up to 7.5 gpm (30 L/min), making it versatile for various fluid control applications where precise flow regulation and backflow prevention are necessary. The seal kit for this cartridge utilizes Viton components, ensuring reliable sealing under diverse conditions and extending the maintenance intervals due to their robust nature in harsh environments.
The Sun Hydraulics CNBCXEN (CNBCXEN) is a precision-engineered hydraulic check valve designed for high-pressure applications, supporting a maximum operating pressure of 5000 psi (350 bar) at both ports. This model features a free flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specified orifice diameter can range between .016 and .062 inches (0.4 to 1.6 mm), and is clearly stamped on one of the cartridge's hex faces for easy identification. The CNBCXEN valve is built with Sun's floating style construction which enhances its durability and performance by minimizing potential internal parts binding. This design consideration is crucial for applications where installation torque and cartridge/cavity machining variations might otherwise compromise valve operation. It fits into a T-16A cavity and has a hex size of 3/4 inch (19.1 mm), with an installation torque requirement between 20 and 25 lbf ft (27 - 33 Nm). The valve itself weighs about .20 lb (0.10 kg), making it lightweight yet robust enough for demanding uses. This model\u2019s capacity is rated at up to 7.5 gpm (30 L/min), making it versatile for various fluid control applications where precise flow regulation and backflow prevention are necessary. The seal kit for this cartridge utilizes Viton components, ensuring reliable sealing under diverse conditions and extending the maintenance intervals due to their robust nature in harsh environments.

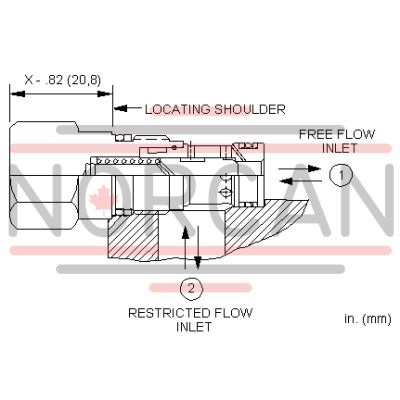

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
