SUN HYDRAULICS
CNBCXFN
$33.06 USD
- SUN HYDRAULICS
- Material:CNBCXFN
- Model:CNBC-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXFN (CNBCXFN) is a high-performance hydraulic check valve designed for robust fluid control in various hydraulic systems. This model features a free flow from port 1 to port 2, with a customer-specified orifice to restrict flow from port 2 to port 1, ensuring precise control over fluid backflow and maintaining system efficiency. The valve is compatible with a maximum operating pressure of 5000 psi (350 bar) at both ports, making it suitable for high-pressure applications. The CNBCXFN employs Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity or cartridge machining. This design enhances the valve's reliability and durability in demanding operational environments. The specified orifice diameter, critical for the valve's operation, is conveniently stamped on one of the cartridge's hex faces for easy identification. With a capacity of 7.5 gpm (30 L/min) and an orifice range of .016 - .062 in (0.4 - 1.6 mm), this valve is versatile enough to handle moderate flow rates while providing precise flow control necessary for efficient system performance. The model also supports direct installation into a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm), ensuring secure and straightforward mounting. Additional features include a standard hex size of 3/4 in (19.1 mm) and a lightweight design at just .20 lb (0.10 kg), which facilitates ease of handling and integration into various hydraulic circuits without adding significant weight or bulk to the system setup.
The Sun Hydraulics CNBCXFN (CNBCXFN) is a high-performance hydraulic check valve designed for robust fluid control in various hydraulic systems. This model features a free flow from port 1 to port 2, with a customer-specified orifice to restrict flow from port 2 to port 1, ensuring precise control over fluid backflow and maintaining system efficiency. The valve is compatible with a maximum operating pressure of 5000 psi (350 bar) at both ports, making it suitable for high-pressure applications. The CNBCXFN employs Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity or cartridge machining. This design enhances the valve's reliability and durability in demanding operational environments. The specified orifice diameter, critical for the valve's operation, is conveniently stamped on one of the cartridge's hex faces for easy identification. With a capacity of 7.5 gpm (30 L/min) and an orifice range of .016 - .062 in (0.4 - 1.6 mm), this valve is versatile enough to handle moderate flow rates while providing precise flow control necessary for efficient system performance. The model also supports direct installation into a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm), ensuring secure and straightforward mounting. Additional features include a standard hex size of 3/4 in (19.1 mm) and a lightweight design at just .20 lb (0.10 kg), which facilitates ease of handling and integration into various hydraulic circuits without adding significant weight or bulk to the system setup.

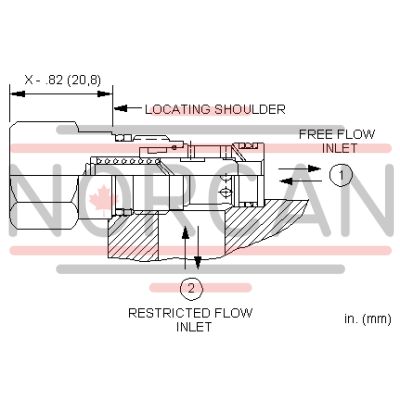

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
