SUN HYDRAULICS
CNBCXFV
$39.52 USD
- SUN HYDRAULICS
- Material:CNBCXFV
- Model:CNBC-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXFV (CNBCXFV) is a highly specialized hydraulic check valve designed for precise fluid control in hydraulic systems. This model features a unique free flow from port 1 to port 2, facilitated by a customer-specified bypass orifice that restricts flow in the reverse direction from port 2 to port 1. The specific orifice size, which can range from .016 to .062 inches (0.4 to 1.6 mm), is clearly stamped on the cartridge\u2019s hex face, ensuring easy identification and compliance with system requirements. Constructed to fit within a T162A cavity and classified under the Series 0, the CNBCXFV supports a maximum operating pressure of up to 5000 psi (350 bar) and has a flow capacity of up to 7.5 gpm (30 L/min). It is engineered using Sun\u2019s floating style construction which minimizes the risk of internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. With its robust design, the valve can handle significant pressure levels at both ports, making it suitable for high-demand applications. The model also incorporates Viton seals (part of kit 990162006), known for their high performance in diverse conditions, enhancing the valve's reliability and longevity. Weighing only about 0.20 lb (0.10 kg), it ensures minimal addition to system weight while maintaining operational efficiency and effectiveness in hydraulic circuitry where precise fluid control is essential.
The Sun Hydraulics CNBCXFV (CNBCXFV) is a highly specialized hydraulic check valve designed for precise fluid control in hydraulic systems. This model features a unique free flow from port 1 to port 2, facilitated by a customer-specified bypass orifice that restricts flow in the reverse direction from port 2 to port 1. The specific orifice size, which can range from .016 to .062 inches (0.4 to 1.6 mm), is clearly stamped on the cartridge\u2019s hex face, ensuring easy identification and compliance with system requirements. Constructed to fit within a T162A cavity and classified under the Series 0, the CNBCXFV supports a maximum operating pressure of up to 5000 psi (350 bar) and has a flow capacity of up to 7.5 gpm (30 L/min). It is engineered using Sun\u2019s floating style construction which minimizes the risk of internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. With its robust design, the valve can handle significant pressure levels at both ports, making it suitable for high-demand applications. The model also incorporates Viton seals (part of kit 990162006), known for their high performance in diverse conditions, enhancing the valve's reliability and longevity. Weighing only about 0.20 lb (0.10 kg), it ensures minimal addition to system weight while maintaining operational efficiency and effectiveness in hydraulic circuitry where precise fluid control is essential.

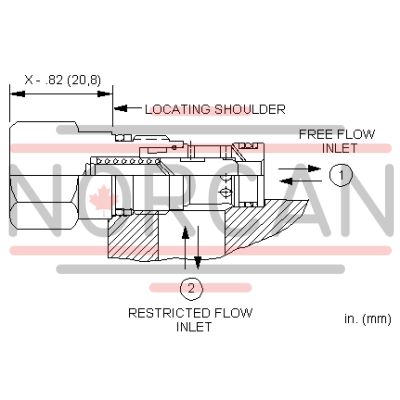

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
