SUN HYDRAULICS
CNBCXZN
$35.05 USD
- SUN HYDRAULICS
- Material:CNBCXZN
- Model:CNBC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXZN (CNBCXZN) is a highly versatile check valve designed for hydraulic applications requiring reliable one-way flow control and reverse flow restriction. This model features a two-port check valve system that allows free flow from port 1 to port 2, while a customer-specified orifice restricts the flow in the opposite direction from port 2 to port 1. The orifice range for this model spans from 0.016 inches to 0.062 inches (0.4 mm to 1.6 mm), allowing for customization based on specific hydraulic system requirements. Constructed with Sun's floating style design, the CNBCXZN minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining, ensuring consistent performance and longevity of the valve. The model is built to accommodate high-pressure applications, capable of handling up to 5000 psi (350 bar) at both ports. This valve's compact design includes a hex size of 3/4 inch (19.1 mm) and a light weight of approximately 0.20 lb (0.10 kg), making it easy to install with an installation torque requirement between 20 - 25 lbf ft (27 - 33 Nm). The CNBCXZN is compatible with Viton seal kits, specifically the Viton: 990162006, ensuring effective sealing and operation under various conditions. Ideal for systems where space and efficiency are critical, the CNBCXZN offers robust performance in a compact form factor, making it suitable for a wide range of industrial hydraulic applications where precise fluid control is necessary.
The Sun Hydraulics CNBCXZN (CNBCXZN) is a highly versatile check valve designed for hydraulic applications requiring reliable one-way flow control and reverse flow restriction. This model features a two-port check valve system that allows free flow from port 1 to port 2, while a customer-specified orifice restricts the flow in the opposite direction from port 2 to port 1. The orifice range for this model spans from 0.016 inches to 0.062 inches (0.4 mm to 1.6 mm), allowing for customization based on specific hydraulic system requirements. Constructed with Sun's floating style design, the CNBCXZN minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining, ensuring consistent performance and longevity of the valve. The model is built to accommodate high-pressure applications, capable of handling up to 5000 psi (350 bar) at both ports. This valve's compact design includes a hex size of 3/4 inch (19.1 mm) and a light weight of approximately 0.20 lb (0.10 kg), making it easy to install with an installation torque requirement between 20 - 25 lbf ft (27 - 33 Nm). The CNBCXZN is compatible with Viton seal kits, specifically the Viton: 990162006, ensuring effective sealing and operation under various conditions. Ideal for systems where space and efficiency are critical, the CNBCXZN offers robust performance in a compact form factor, making it suitable for a wide range of industrial hydraulic applications where precise fluid control is necessary.

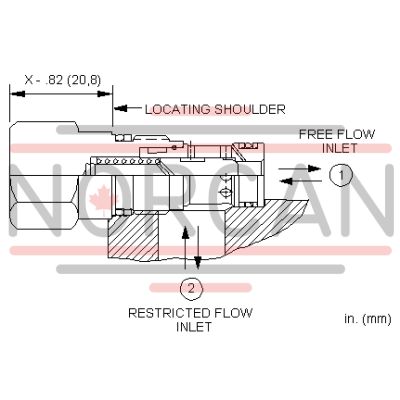

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
