SUN HYDRAULICS
CNBCXZV
$41.50 USD
- SUN HYDRAULICS
- Material:CNBCXZV
- Model:CNBC-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNBCXZV (CNBCXZV) is a precision-engineered hydraulic check valve designed for high-pressure applications, capable of handling pressures up to 5000 psi (350 bar) at both ports. This model features a unique free flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, making it versatile for various hydraulic circuits. The specified orifice range for this model is between .016 to .062 inches (0.4 to 1.6 mm), allowing for tailored fluid control based on specific system requirements. The CNBCXZV valve utilizes Sun Hydraulics' floating style construction which enhances durability and performance by minimizing the potential for internal parts binding. This is particularly beneficial in applications where installation torque and cartridge/cavity machining variations might otherwise compromise valve operation. The model's construction also ensures reliable operation even under varying environmental conditions and demanding operational settings. Additionally, the CNBCXZV is designed with a compact form factor, having a hex size of 3/4 inches (19.1 mm) and a lightweight design weighing only .20 lb (0.10 kg). It fits the T-16A cavity and can support up to 7.5 gpm (30 L/min) capacity, suitable for a wide range of fluid dynamics applications. Installation specifications recommend a torque between 20 - 25 lbf ft (27 - 33 Nm), ensuring secure fitting without over-tightening. This check valve is ideal for hydraulic systems requiring reliable check functionality with the option for controlled reverse flow, suitable for industrial machinery, mobile hydraulics, and other applications demanding robust performance in controlling fluid flow under high pressure conditions.
The Sun Hydraulics CNBCXZV (CNBCXZV) is a precision-engineered hydraulic check valve designed for high-pressure applications, capable of handling pressures up to 5000 psi (350 bar) at both ports. This model features a unique free flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, making it versatile for various hydraulic circuits. The specified orifice range for this model is between .016 to .062 inches (0.4 to 1.6 mm), allowing for tailored fluid control based on specific system requirements. The CNBCXZV valve utilizes Sun Hydraulics' floating style construction which enhances durability and performance by minimizing the potential for internal parts binding. This is particularly beneficial in applications where installation torque and cartridge/cavity machining variations might otherwise compromise valve operation. The model's construction also ensures reliable operation even under varying environmental conditions and demanding operational settings. Additionally, the CNBCXZV is designed with a compact form factor, having a hex size of 3/4 inches (19.1 mm) and a lightweight design weighing only .20 lb (0.10 kg). It fits the T-16A cavity and can support up to 7.5 gpm (30 L/min) capacity, suitable for a wide range of fluid dynamics applications. Installation specifications recommend a torque between 20 - 25 lbf ft (27 - 33 Nm), ensuring secure fitting without over-tightening. This check valve is ideal for hydraulic systems requiring reliable check functionality with the option for controlled reverse flow, suitable for industrial machinery, mobile hydraulics, and other applications demanding robust performance in controlling fluid flow under high pressure conditions.

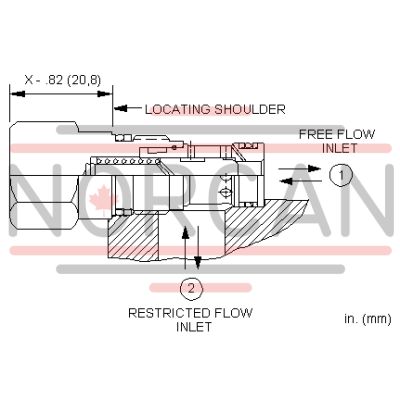

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
