SUN HYDRAULICS
CNCCXAN
$33.66 USD
- SUN HYDRAULICS
- Material:CNCCXAN
- Model:CNCC-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCCXAN (CNCCXAN) is a specialized hydraulic flow control valve designed for precise fluid handling in hydraulic systems. This fixed orifice, non-pressure compensated flow control valve includes a reverse flow check feature, ensuring fluid can only move in the intended direction unless bypassed. The valve's orifice diameter is customizable based on user specifications and is permanently set at the factory to ensure consistent performance. Key features of the CNCCXAN include its ability to fit into any Sun Hydraulics flow control manifold due to its standardized 2-port cartridge design, which maintains the same flow path and cavity across a given frame size. Despite varying cartridge extension dimensions, these valves are interchangeable within their frame size, simplifying system upgrades or replacements. The specified orifice diameter is clearly stamped on one of the cartridge\u2019s hex faces for easy identification. The valve operates under a maximum pressure of 5000 psi (350 bar) and can handle flow rates up to 15 gpm (60 L/min). It comes with an operational temperature range suitable for various industrial applications, making it versatile for different hydraulic setups. The construction incorporates Sun's floating style, reducing risks associated with installation torque or machining variations that could otherwise lead to internal parts binding. This model is particularly noted for its robust design and reliable operation in controlling fluid flow proportionally across pressure differentials between ports 1 and 2, calculated through the square root of these differentials. It includes a seal kit made from Viton material for enhanced durability against harsh fluids and environmental conditions. With a compact model weight of .20 lb (0.10 kg), it offers an optimal balance between strength and ease of installation, requiring an installation torque between 30 - 35 lbf ft (41 - 47 Nm).
The Sun Hydraulics CNCCXAN (CNCCXAN) is a specialized hydraulic flow control valve designed for precise fluid handling in hydraulic systems. This fixed orifice, non-pressure compensated flow control valve includes a reverse flow check feature, ensuring fluid can only move in the intended direction unless bypassed. The valve's orifice diameter is customizable based on user specifications and is permanently set at the factory to ensure consistent performance. Key features of the CNCCXAN include its ability to fit into any Sun Hydraulics flow control manifold due to its standardized 2-port cartridge design, which maintains the same flow path and cavity across a given frame size. Despite varying cartridge extension dimensions, these valves are interchangeable within their frame size, simplifying system upgrades or replacements. The specified orifice diameter is clearly stamped on one of the cartridge\u2019s hex faces for easy identification. The valve operates under a maximum pressure of 5000 psi (350 bar) and can handle flow rates up to 15 gpm (60 L/min). It comes with an operational temperature range suitable for various industrial applications, making it versatile for different hydraulic setups. The construction incorporates Sun's floating style, reducing risks associated with installation torque or machining variations that could otherwise lead to internal parts binding. This model is particularly noted for its robust design and reliable operation in controlling fluid flow proportionally across pressure differentials between ports 1 and 2, calculated through the square root of these differentials. It includes a seal kit made from Viton material for enhanced durability against harsh fluids and environmental conditions. With a compact model weight of .20 lb (0.10 kg), it offers an optimal balance between strength and ease of installation, requiring an installation torque between 30 - 35 lbf ft (41 - 47 Nm).

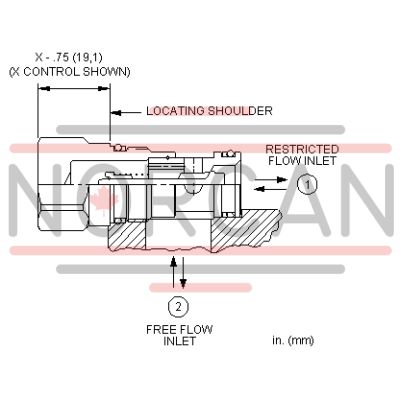

This valve is a fixed orifice, non-pressure compensated flow control with a reverse flow check. The flow setting is specified by the user and is set at the factory.
- Customer must specify the orifice diameter.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- These are essentially check valves with bypass orifices. The flow path matches Sun's flow controls and can be used in any flow control manifolds. Valves with the opposite direction of flow can be found under check valves with bypass orifices.
- Because these valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
