SUN HYDRAULICS
CNCDXAV
$49.54 USD
- SUN HYDRAULICS
- Material:CNCDXAV
- Model:CNCD-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXAV (CNCDXAV) is a versatile hydraulic valve designed for efficient flow control in various applications. This model, part of the T11A series, functions primarily as a side-to-nose cheater check valve with a bypass orifice, allowing free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through a customer-specified orifice. The third port of the cartridge is blocked, enhancing its application in systems where selective flow direction is crucial. The CNCDXAV supports a maximum operating pressure of 5000 psi (350 bar) and can handle up to 15 gallons per minute (60 L/min), making it suitable for high-pressure systems. Its orifice range spans from .016 to .153 inches (0.4 to 3.9 mm), providing flexibility in application according to specific requirements. The specified orifice diameter is conveniently stamped on one of the hex faces of the cartridge for easy identification. This model incorporates Sun's floating style construction which minimizes potential internal part binding due to variations in installation torque or cavity/cartridge machining errors, ensuring reliable performance and longevity. The valve has an installation torque requirement between 30 - 35 lbf ft (41 - 47 Nm) and weighs approximately .30 lb (0.15 kg). For maintenance, it uses a Viton seal kit (990011006), ensuring that it remains operational under various conditions without leakage. Designed primarily for use in full-time regeneration circuits, the CNCDXAV allows cylinders to develop full force upon stopping while dropping rod end pressure to zero when flow ceases. This feature makes it particularly effective in applications requiring precise motion control and efficient energy use.
The Sun Hydraulics CNCDXAV (CNCDXAV) is a versatile hydraulic valve designed for efficient flow control in various applications. This model, part of the T11A series, functions primarily as a side-to-nose cheater check valve with a bypass orifice, allowing free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through a customer-specified orifice. The third port of the cartridge is blocked, enhancing its application in systems where selective flow direction is crucial. The CNCDXAV supports a maximum operating pressure of 5000 psi (350 bar) and can handle up to 15 gallons per minute (60 L/min), making it suitable for high-pressure systems. Its orifice range spans from .016 to .153 inches (0.4 to 3.9 mm), providing flexibility in application according to specific requirements. The specified orifice diameter is conveniently stamped on one of the hex faces of the cartridge for easy identification. This model incorporates Sun's floating style construction which minimizes potential internal part binding due to variations in installation torque or cavity/cartridge machining errors, ensuring reliable performance and longevity. The valve has an installation torque requirement between 30 - 35 lbf ft (41 - 47 Nm) and weighs approximately .30 lb (0.15 kg). For maintenance, it uses a Viton seal kit (990011006), ensuring that it remains operational under various conditions without leakage. Designed primarily for use in full-time regeneration circuits, the CNCDXAV allows cylinders to develop full force upon stopping while dropping rod end pressure to zero when flow ceases. This feature makes it particularly effective in applications requiring precise motion control and efficient energy use.

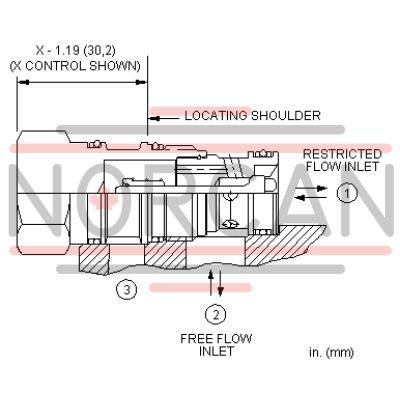

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
