SUN HYDRAULICS
CNCDXBN
$41.60 USD
- SUN HYDRAULICS
- Material:CNCDXBN
- Model:CNCD-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXBN (CNCDXBN) is a specialized hydraulic valve designed for precise fluid control in hydraulic systems. This model is engineered as a freeflow, sidetonose cheater check valve featuring a bypass orifice, which operates as a 2-port check valve within a 3-port cavity configuration. It facilitates unobstructed flow from port 2 to port 1, while the flow from port 1 to port 2 is meticulously regulated by a customer-specified orifice. The third port of the cartridge remains blocked, enhancing the valve's functionality in specific applications. A notable feature of the CNCDXBN is its capacity to support full force development by a cylinder upon stopping in full-time regeneration circuits. This capability is achieved through the bypass orifice which effectively reduces the rod end pressure to zero once the flow ceases, optimizing performance and safety. The specified orifice diameter crucial for this operation is conveniently stamped on one of the hex faces of the cartridge for easy identification. Additionally, this model incorporates Sun Hydraulics' floating style construction. This design choice minimizes potential internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining, thus ensuring reliable and consistent operation. Key specifications include a handling capacity of up to 15 gpm (60 L/min), with maximum operating pressures reaching up to 5000 psi (350 bar). The CNCDXBN supports an orifice range between .016 - .153 in (0.4 - 3.9 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Its compact design results in a minimal weight of .30 lb (0.15 kg), making it suitable for various industrial applications where space and weight are considerations.
The Sun Hydraulics CNCDXBN (CNCDXBN) is a specialized hydraulic valve designed for precise fluid control in hydraulic systems. This model is engineered as a freeflow, sidetonose cheater check valve featuring a bypass orifice, which operates as a 2-port check valve within a 3-port cavity configuration. It facilitates unobstructed flow from port 2 to port 1, while the flow from port 1 to port 2 is meticulously regulated by a customer-specified orifice. The third port of the cartridge remains blocked, enhancing the valve's functionality in specific applications. A notable feature of the CNCDXBN is its capacity to support full force development by a cylinder upon stopping in full-time regeneration circuits. This capability is achieved through the bypass orifice which effectively reduces the rod end pressure to zero once the flow ceases, optimizing performance and safety. The specified orifice diameter crucial for this operation is conveniently stamped on one of the hex faces of the cartridge for easy identification. Additionally, this model incorporates Sun Hydraulics' floating style construction. This design choice minimizes potential internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining, thus ensuring reliable and consistent operation. Key specifications include a handling capacity of up to 15 gpm (60 L/min), with maximum operating pressures reaching up to 5000 psi (350 bar). The CNCDXBN supports an orifice range between .016 - .153 in (0.4 - 3.9 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Its compact design results in a minimal weight of .30 lb (0.15 kg), making it suitable for various industrial applications where space and weight are considerations.

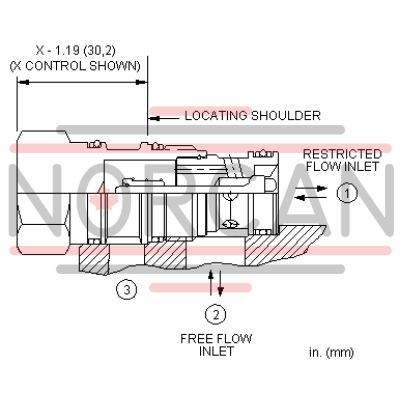

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
