SUN HYDRAULICS
CNCDXBV
$49.54 USD
- SUN HYDRAULICS
- Material:CNCDXBV
- Model:CNCD-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXBV (CNCDXBV) is a sophisticated hydraulic check valve designed for efficient flow regulation in hydraulic systems. This model, which fits within the T11A cavity and belongs to Series 1, showcases a unique three-port configuration where it primarily functions as a 2-port check valve with a third port that is blocked off. The valve allows free flow from port 2 to port 1 while featuring a customer-specified orifice that meticulously controls the flow from port 1 to port 2. This specific design is essential for applications requiring precise flow control such as in full-time regeneration circuits where it is critical to develop full force by the cylinder upon stopping. The CNCDXBV is engineered to handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 15 gpm (60 L/min). The orifice range of this model spans from .016 inches to .153 inches (0.4 mm to 3.9 mm), which can be custom specified and is clearly stamped on one of the hex faces of the cartridge for easy identification. The model's construction incorporates Sun\u2019s floating style design which aids in minimizing internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Other technical specifications include a valve hex size of 7/8 inches (22.2 mm) and an installation torque requirement ranging between 30-35 lbf ft (41-47 Nm). The model weighs approximately .30 lb (0.15 kg), ensuring it is lightweight yet robust enough for demanding applications. Additionally, it supports Viton seals, enhancing its durability and performance in varying operational conditions.
The Sun Hydraulics CNCDXBV (CNCDXBV) is a sophisticated hydraulic check valve designed for efficient flow regulation in hydraulic systems. This model, which fits within the T11A cavity and belongs to Series 1, showcases a unique three-port configuration where it primarily functions as a 2-port check valve with a third port that is blocked off. The valve allows free flow from port 2 to port 1 while featuring a customer-specified orifice that meticulously controls the flow from port 1 to port 2. This specific design is essential for applications requiring precise flow control such as in full-time regeneration circuits where it is critical to develop full force by the cylinder upon stopping. The CNCDXBV is engineered to handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 15 gpm (60 L/min). The orifice range of this model spans from .016 inches to .153 inches (0.4 mm to 3.9 mm), which can be custom specified and is clearly stamped on one of the hex faces of the cartridge for easy identification. The model's construction incorporates Sun\u2019s floating style design which aids in minimizing internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Other technical specifications include a valve hex size of 7/8 inches (22.2 mm) and an installation torque requirement ranging between 30-35 lbf ft (41-47 Nm). The model weighs approximately .30 lb (0.15 kg), ensuring it is lightweight yet robust enough for demanding applications. Additionally, it supports Viton seals, enhancing its durability and performance in varying operational conditions.

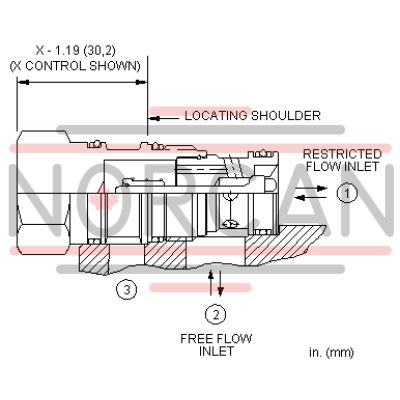

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
