SUN HYDRAULICS
CNCDXCN
$39.62 USD
- SUN HYDRAULICS
- Material:CNCDXCN
- Model:CNCD-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXCN (CNCDXCN) is a specialized hydraulic valve designed for precise fluid control in various applications. This model, belonging to the T11A cavity series with a capacity of 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar), is engineered for robust performance in demanding environments. The CNCDXCN features a unique freeflow, side-to-nose cheater check valve configuration with a bypass orifice, which facilitates free flow from port 2 to port 1 while controlling flow from port 1 to port 2 through a customer-specified orifice. This orifice range can be between .016 - .153 in (0.4 - 3.9 mm), tailored to specific application needs and stamped on one of the cartridge's hex faces for easy identification. This model is particularly effective when used in full-time regeneration circuits, allowing full force development by the cylinder at stoppage while dropping rod end pressure to zero once the flow ceases. The construction incorporates Sun's floating style design which minimizes internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. The valve has an installation torque range of 30 - 35 lbf-ft (41 - 47 Nm) and weighs approximately .30 lb (0.15 kg). It also supports Viton seal kits under part number: 990011006, ensuring reliable sealing under various conditions. Overall, the Sun Hydraulics CNCDXCN valve offers precise hydraulic control with customizable features suitable for a wide range of industrial applications requiring meticulous flow regulation and high-pressure tolerance.
The Sun Hydraulics CNCDXCN (CNCDXCN) is a specialized hydraulic valve designed for precise fluid control in various applications. This model, belonging to the T11A cavity series with a capacity of 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar), is engineered for robust performance in demanding environments. The CNCDXCN features a unique freeflow, side-to-nose cheater check valve configuration with a bypass orifice, which facilitates free flow from port 2 to port 1 while controlling flow from port 1 to port 2 through a customer-specified orifice. This orifice range can be between .016 - .153 in (0.4 - 3.9 mm), tailored to specific application needs and stamped on one of the cartridge's hex faces for easy identification. This model is particularly effective when used in full-time regeneration circuits, allowing full force development by the cylinder at stoppage while dropping rod end pressure to zero once the flow ceases. The construction incorporates Sun's floating style design which minimizes internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. The valve has an installation torque range of 30 - 35 lbf-ft (41 - 47 Nm) and weighs approximately .30 lb (0.15 kg). It also supports Viton seal kits under part number: 990011006, ensuring reliable sealing under various conditions. Overall, the Sun Hydraulics CNCDXCN valve offers precise hydraulic control with customizable features suitable for a wide range of industrial applications requiring meticulous flow regulation and high-pressure tolerance.

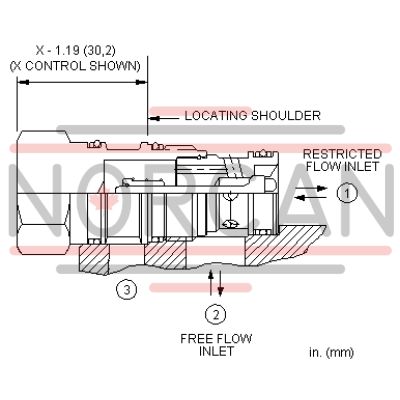

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
