SUN HYDRAULICS
CNCDXCV
$47.56 USD
- SUN HYDRAULICS
- Material:CNCDXCV
- Model:CNCD-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXCV (CNCDXCV) is a specialized hydraulic valve designed for advanced fluid control in various hydraulic systems. This model features a unique freeflow, side-to-nose cheater check valve configuration with a bypass orifice that effectively functions as a 2-port check valve within a 3-port cavity design. It permits free flow from port 2 to port 1, while the flow from port 1 to port 2 is controlled by a customer-specified orifice, allowing for precise customization based on specific application needs. The third port of the cartridge is blocked, enhancing the valve's functionality in targeted hydraulic circuits. Key specifications of the CNCDXCV include an operational capacity of up to 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar). The orifice range for this model spans from .016 to .153 inches (0.4 to 3.9 mm), providing flexibility in application and installation. The valve\u2019s hex size is measured at 7/8 inches (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Additionally, the model weighs approximately .30 lb (0.15 kg). This model incorporates Sun Hydraulics\u2019 floating style construction which minimizes potential internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, thus ensuring reliability and longevity of the valve even under stringent operational conditions. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification and maintenance. Overall, the Sun Hydraulics CNCDXCV valve is engineered for high performance and durability, making it suitable for applications requiring reliable hydraulic flow control where precision and customization are critical.
The Sun Hydraulics CNCDXCV (CNCDXCV) is a specialized hydraulic valve designed for advanced fluid control in various hydraulic systems. This model features a unique freeflow, side-to-nose cheater check valve configuration with a bypass orifice that effectively functions as a 2-port check valve within a 3-port cavity design. It permits free flow from port 2 to port 1, while the flow from port 1 to port 2 is controlled by a customer-specified orifice, allowing for precise customization based on specific application needs. The third port of the cartridge is blocked, enhancing the valve's functionality in targeted hydraulic circuits. Key specifications of the CNCDXCV include an operational capacity of up to 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar). The orifice range for this model spans from .016 to .153 inches (0.4 to 3.9 mm), providing flexibility in application and installation. The valve\u2019s hex size is measured at 7/8 inches (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Additionally, the model weighs approximately .30 lb (0.15 kg). This model incorporates Sun Hydraulics\u2019 floating style construction which minimizes potential internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, thus ensuring reliability and longevity of the valve even under stringent operational conditions. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification and maintenance. Overall, the Sun Hydraulics CNCDXCV valve is engineered for high performance and durability, making it suitable for applications requiring reliable hydraulic flow control where precision and customization are critical.

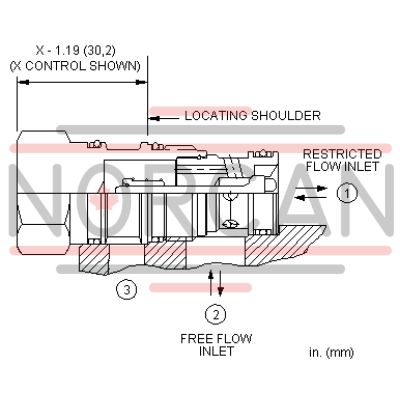

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
