SUN HYDRAULICS
CNCDXDV
$49.54 USD
- SUN HYDRAULICS
- Material:CNCDXDV
- Model:CNCD-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXDV (CNCDXDV) is a highly specialized hydraulic valve designed for advanced fluid control in various applications. This model, part of the T11A series, features a unique configuration that includes freeflow, side-to-nose cheater check valves with a bypass orifice. It operates as a 2-port check valve within a 3-port cavity, facilitating free flow from port 2 to port 1 while controlling flow from port 1 to port 2 through a customer-specified orifice. The orifice diameter chosen by the customer is clearly marked on one of the hex faces of the cartridge for easy identification. The CNCDXDV is particularly beneficial in full-time regeneration circuits where it enables full force development by the cylinder upon stopping. This functionality is achieved by dropping rod end pressure to zero once flow out of the rod ceases, thanks to its bypass orifice feature. The valve's design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar), and an orifice range from .016 to .153 inches (0.4 to 3.9 mm). The valve can handle up to 15 gpm (60 L/min) and has an installation torque requirement between 30 and 35 lbf ft (41 - 47 Nm). Its compact form factor weighs only about .30 lb (0.15 kg), and it requires Viton seal kits for cartridge maintenance. Overall, the Sun Hydraulics CNCDXDV offers robust performance and precise control in hydraulic systems, making it suitable for applications requiring reliable fluid management with specific flow characteristics.
The Sun Hydraulics CNCDXDV (CNCDXDV) is a highly specialized hydraulic valve designed for advanced fluid control in various applications. This model, part of the T11A series, features a unique configuration that includes freeflow, side-to-nose cheater check valves with a bypass orifice. It operates as a 2-port check valve within a 3-port cavity, facilitating free flow from port 2 to port 1 while controlling flow from port 1 to port 2 through a customer-specified orifice. The orifice diameter chosen by the customer is clearly marked on one of the hex faces of the cartridge for easy identification. The CNCDXDV is particularly beneficial in full-time regeneration circuits where it enables full force development by the cylinder upon stopping. This functionality is achieved by dropping rod end pressure to zero once flow out of the rod ceases, thanks to its bypass orifice feature. The valve's design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar), and an orifice range from .016 to .153 inches (0.4 to 3.9 mm). The valve can handle up to 15 gpm (60 L/min) and has an installation torque requirement between 30 and 35 lbf ft (41 - 47 Nm). Its compact form factor weighs only about .30 lb (0.15 kg), and it requires Viton seal kits for cartridge maintenance. Overall, the Sun Hydraulics CNCDXDV offers robust performance and precise control in hydraulic systems, making it suitable for applications requiring reliable fluid management with specific flow characteristics.

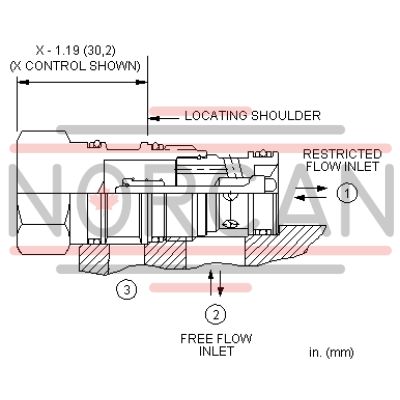

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
