SUN HYDRAULICS
CNCDXEV
$47.56 USD
- SUN HYDRAULICS
- Material:CNCDXEV
- Model:CNCD-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXEV (CNCDXEV) is a specialized hydraulic valve designed for precise fluid control in hydraulic systems. This model operates as a side-to-nose cheater check valve with a bypass orifice, serving effectively as a 2-port check valve within a 3-port cavity configuration. It facilitates free flow from port 2 to port 1, while the bypass orifice, which can be specified by the customer, regulates flow from port 1 to port 2. Notably, port 3 of this cartridge is blocked off to streamline the flow direction. The CNCDXEV is particularly useful in full-time regeneration circuits where it allows for full force development by the cylinder at cessation of movement. The design feature of a bypass orifice uniquely drops the rod end pressure to zero once there is no flow exiting the rod, enhancing operational efficiency and safety. The valve's construction incorporates Sun Hydraulics' floating style design which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. Technical specifications include a capacity of up to 15 gpm (60 L/min) and an ability to withstand maximum operating pressures up to 5000 psi (350 bar). The orifice range provided varies from .016 to .153 inches (0.4 to 3.9 mm), allowing for customization based on specific application requirements. Additional features such as a valve hex size of 7/8 inches (22.2 mm) and an installation torque ranging between 30 - 35 lbf ft (41 - 47 Nm) underscore its robustness and adaptability in different setups. The model weighs approximately .30 lb (0.15 kg), making it lightweight yet durable for industrial use.
The Sun Hydraulics CNCDXEV (CNCDXEV) is a specialized hydraulic valve designed for precise fluid control in hydraulic systems. This model operates as a side-to-nose cheater check valve with a bypass orifice, serving effectively as a 2-port check valve within a 3-port cavity configuration. It facilitates free flow from port 2 to port 1, while the bypass orifice, which can be specified by the customer, regulates flow from port 1 to port 2. Notably, port 3 of this cartridge is blocked off to streamline the flow direction. The CNCDXEV is particularly useful in full-time regeneration circuits where it allows for full force development by the cylinder at cessation of movement. The design feature of a bypass orifice uniquely drops the rod end pressure to zero once there is no flow exiting the rod, enhancing operational efficiency and safety. The valve's construction incorporates Sun Hydraulics' floating style design which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. Technical specifications include a capacity of up to 15 gpm (60 L/min) and an ability to withstand maximum operating pressures up to 5000 psi (350 bar). The orifice range provided varies from .016 to .153 inches (0.4 to 3.9 mm), allowing for customization based on specific application requirements. Additional features such as a valve hex size of 7/8 inches (22.2 mm) and an installation torque ranging between 30 - 35 lbf ft (41 - 47 Nm) underscore its robustness and adaptability in different setups. The model weighs approximately .30 lb (0.15 kg), making it lightweight yet durable for industrial use.

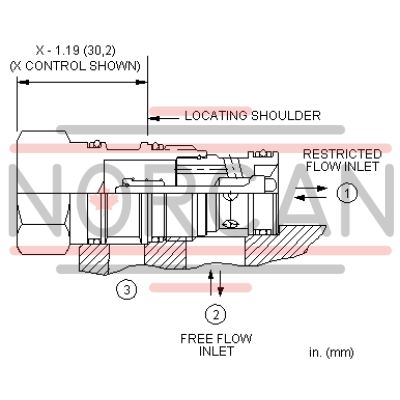

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
