SUN HYDRAULICS
CNCDXFV
$49.54 USD
- SUN HYDRAULICS
- Material:CNCDXFV
- Model:CNCD-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXFV (CNCDXFV) is a specialized hydraulic valve designed for efficient fluid control in various hydraulic systems. This model functions primarily as a freeflow, side-to-nose cheater check valve with an added bypass orifice, effectively operating as a 2-port check valve within a 3-port cavity configuration. It enables free flow from port 2 to port 1 while the bypass orifice, which can be customized to user specifications, manages the controlled flow from port 1 to port 2. Port 3 on the cartridge is intentionally blocked to streamline the operation. A key feature of the CNCDXFV is its application in full-time regeneration circuits, allowing hydraulic cylinders to develop full force upon stopping. This capability is enhanced by the bypass orifice, which reduces rod end pressure to zero once flow ceases, optimizing performance and safety. The specified orifice diameter is conveniently stamped on one of the hex faces of the cartridge for easy identification. The construction of this valve incorporates Sun\u2019s floating style design which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or variations in cavity/cartridge machining. This model is housed within a T11A cavity and belongs to Sun's Series 1. It supports a maximum operating pressure of 5000 psi (350 bar) and has a capacity of up to 15 gpm (60 L/min). The range of orifice sizes available spans from .016 to .153 inches (0.4 to 3.9 mm), accommodating various application needs. Additional technical specifications include a valve hex size of 7/8 inches (22.2 mm) and an installation torque requirement between 30-35 lbf-ft (41-47 Nm). The model weighs approximately .30 lbs (0.15 kg), and uses Viton seals for enhanced durability and performance under varying operational conditions.
The Sun Hydraulics CNCDXFV (CNCDXFV) is a specialized hydraulic valve designed for efficient fluid control in various hydraulic systems. This model functions primarily as a freeflow, side-to-nose cheater check valve with an added bypass orifice, effectively operating as a 2-port check valve within a 3-port cavity configuration. It enables free flow from port 2 to port 1 while the bypass orifice, which can be customized to user specifications, manages the controlled flow from port 1 to port 2. Port 3 on the cartridge is intentionally blocked to streamline the operation. A key feature of the CNCDXFV is its application in full-time regeneration circuits, allowing hydraulic cylinders to develop full force upon stopping. This capability is enhanced by the bypass orifice, which reduces rod end pressure to zero once flow ceases, optimizing performance and safety. The specified orifice diameter is conveniently stamped on one of the hex faces of the cartridge for easy identification. The construction of this valve incorporates Sun\u2019s floating style design which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or variations in cavity/cartridge machining. This model is housed within a T11A cavity and belongs to Sun's Series 1. It supports a maximum operating pressure of 5000 psi (350 bar) and has a capacity of up to 15 gpm (60 L/min). The range of orifice sizes available spans from .016 to .153 inches (0.4 to 3.9 mm), accommodating various application needs. Additional technical specifications include a valve hex size of 7/8 inches (22.2 mm) and an installation torque requirement between 30-35 lbf-ft (41-47 Nm). The model weighs approximately .30 lbs (0.15 kg), and uses Viton seals for enhanced durability and performance under varying operational conditions.

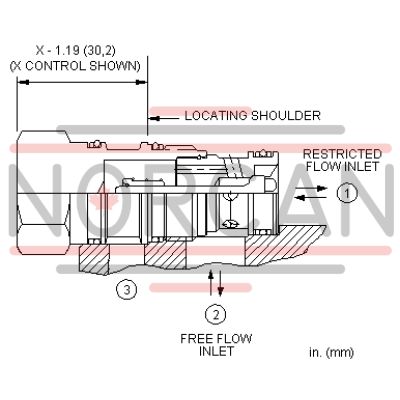

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
