SUN HYDRAULICS
CNCDXZV
$51.53 USD
- SUN HYDRAULICS
- Material:CNCDXZV
- Model:CNCD-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNCDXZV (CNCDXZV) is a specialized hydraulic valve designed for precise fluid control in various hydraulic systems. This model is characterized by its unique freeflow, sidetonose cheater check valve functionality with a bypass orifice, enabling it to operate as a 2-port check valve within a 3-port cavity configuration. It facilitates free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through an orifice, the diameter of which can be specified by the customer and is clearly marked on one of the cartridge\u2019s hex faces. This valve is particularly useful in full-time regeneration circuits, allowing full force to be developed by a cylinder upon stopping. The bypass orifice effectively reduces rod end pressure to zero once the flow ceases, enhancing system efficiency and safety. The CNCDXZV incorporates Sun's floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 15 gpm (60 L/min). The orifice range for this model spans from .016 to .153 inches (0.4 to 3.9 mm), accommodating various application requirements. The valve's hex size is 7/8 inches (22.2 mm) and it requires an installation torque between 30-35 lbf ft (41-47 Nm). Weighing just .30 lb (0.15 kg), the CNCDXZV remains compact and manageable for installation and maintenance purposes. Additionally, it utilizes a Viton seal kit designated as part number: 990011006, ensuring reliable sealing and performance under diverse operating conditions.
The Sun Hydraulics CNCDXZV (CNCDXZV) is a specialized hydraulic valve designed for precise fluid control in various hydraulic systems. This model is characterized by its unique freeflow, sidetonose cheater check valve functionality with a bypass orifice, enabling it to operate as a 2-port check valve within a 3-port cavity configuration. It facilitates free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through an orifice, the diameter of which can be specified by the customer and is clearly marked on one of the cartridge\u2019s hex faces. This valve is particularly useful in full-time regeneration circuits, allowing full force to be developed by a cylinder upon stopping. The bypass orifice effectively reduces rod end pressure to zero once the flow ceases, enhancing system efficiency and safety. The CNCDXZV incorporates Sun's floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 15 gpm (60 L/min). The orifice range for this model spans from .016 to .153 inches (0.4 to 3.9 mm), accommodating various application requirements. The valve's hex size is 7/8 inches (22.2 mm) and it requires an installation torque between 30-35 lbf ft (41-47 Nm). Weighing just .30 lb (0.15 kg), the CNCDXZV remains compact and manageable for installation and maintenance purposes. Additionally, it utilizes a Viton seal kit designated as part number: 990011006, ensuring reliable sealing and performance under diverse operating conditions.

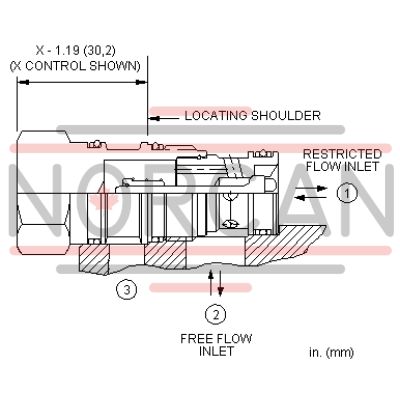

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .153 in.0,4 - 3,9 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
