SUN HYDRAULICS
CNDBXAN
$40.61 USD
- SUN HYDRAULICS
- Material:CNDBXAN
- Model:CNDB-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDBXAN (CNDBXAN) is a high-performance check valve specifically designed for hydraulic applications requiring controlled flow and high pressure tolerance. This model features a unique freeflow, nose-to-side check valve design with a bypass orifice that permits unrestricted flow from port 1 to port 2, while a customer-specified orifice restricts flow in the opposite direction. The specified orifice diameter range can vary between .016 to .062 inches (0.4 to 1.6 mm), allowing for customization based on specific system requirements, and is conveniently stamped on one of the cartridge\u2019s hex faces for easy identification. Engineered for durability and reliability, the CNDBXAN operates effectively at a maximum pressure of 5000 psi (350 bar) across both ports and has a flow capacity of up to 15 gpm (60 L/min). Notably, this cartridge employs Sun's deeper relief style cavity which distinguishes it from other models in Sun's product line by making it non-interchangeable with other cavities. Additionally, the valve incorporates Sun\u2019s floating style construction that minimizes the risk of internal parts binding which could result from excessive installation torque or variations in cavity/cartridge machining. Designed with practicality in mind, the CNDBXAN comes with an installation torque specification of 30 \u2013 35 lbf ft (41 \u2013 47 Nm) and utilizes Viton seals for enhanced performance under varying conditions. This model is housed within a T10A series cavity and requires precise handling during installation to maintain its high efficiency and functionality in demanding hydraulic setups.
The Sun Hydraulics CNDBXAN (CNDBXAN) is a high-performance check valve specifically designed for hydraulic applications requiring controlled flow and high pressure tolerance. This model features a unique freeflow, nose-to-side check valve design with a bypass orifice that permits unrestricted flow from port 1 to port 2, while a customer-specified orifice restricts flow in the opposite direction. The specified orifice diameter range can vary between .016 to .062 inches (0.4 to 1.6 mm), allowing for customization based on specific system requirements, and is conveniently stamped on one of the cartridge\u2019s hex faces for easy identification. Engineered for durability and reliability, the CNDBXAN operates effectively at a maximum pressure of 5000 psi (350 bar) across both ports and has a flow capacity of up to 15 gpm (60 L/min). Notably, this cartridge employs Sun's deeper relief style cavity which distinguishes it from other models in Sun's product line by making it non-interchangeable with other cavities. Additionally, the valve incorporates Sun\u2019s floating style construction that minimizes the risk of internal parts binding which could result from excessive installation torque or variations in cavity/cartridge machining. Designed with practicality in mind, the CNDBXAN comes with an installation torque specification of 30 \u2013 35 lbf ft (41 \u2013 47 Nm) and utilizes Viton seals for enhanced performance under varying conditions. This model is housed within a T10A series cavity and requires precise handling during installation to maintain its high efficiency and functionality in demanding hydraulic setups.

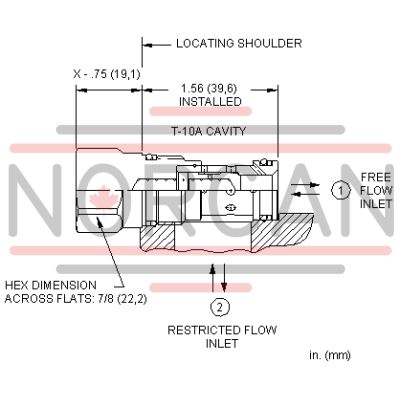

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
