SUN HYDRAULICS
CNDBXAV
$47.06 USD
- SUN HYDRAULICS
- Material:CNDBXAV
- Model:CNDB-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDBXAV (CNDBXAV) is a specialized check valve designed for high-pressure hydraulic systems. This model is distinguished by its ability to handle up to 5000 psi or 350 bar at both ports 1 and 2, making it suitable for robust applications. The valve features a free flow from port 1 to port 2, while flow from port 2 to port 1 is regulated by a customer-specified orifice, with diameters ranging from .016 to .062 inches (0.4 to 1.6 mm). This customization allows users to tailor the valve's performance to specific system requirements. The CNDBXAV utilizes a T10A cavity and is part of the Series 1 line, with a capacity of up to 15 gpm or approximately 60 L/min. It incorporates Sun's floating style construction which helps minimize internal parts binding that could otherwise result from excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and longevity of the valve in demanding operational conditions. Furthermore, this model has specific installation requirements, including a valve hex size of 7/8 inches (22.2 mm) and an installation torque range of 30 - 35 lbf ft (41 -47 Nm). Each cartridge's hex face is stamped with the specified orifice diameter for easy identification during maintenance or system checks. The seal kit for this cartridge uses Viton components, ensuring compatibility with a wide range of hydraulic fluids and environmental conditions.
The Sun Hydraulics CNDBXAV (CNDBXAV) is a specialized check valve designed for high-pressure hydraulic systems. This model is distinguished by its ability to handle up to 5000 psi or 350 bar at both ports 1 and 2, making it suitable for robust applications. The valve features a free flow from port 1 to port 2, while flow from port 2 to port 1 is regulated by a customer-specified orifice, with diameters ranging from .016 to .062 inches (0.4 to 1.6 mm). This customization allows users to tailor the valve's performance to specific system requirements. The CNDBXAV utilizes a T10A cavity and is part of the Series 1 line, with a capacity of up to 15 gpm or approximately 60 L/min. It incorporates Sun's floating style construction which helps minimize internal parts binding that could otherwise result from excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and longevity of the valve in demanding operational conditions. Furthermore, this model has specific installation requirements, including a valve hex size of 7/8 inches (22.2 mm) and an installation torque range of 30 - 35 lbf ft (41 -47 Nm). Each cartridge's hex face is stamped with the specified orifice diameter for easy identification during maintenance or system checks. The seal kit for this cartridge uses Viton components, ensuring compatibility with a wide range of hydraulic fluids and environmental conditions.

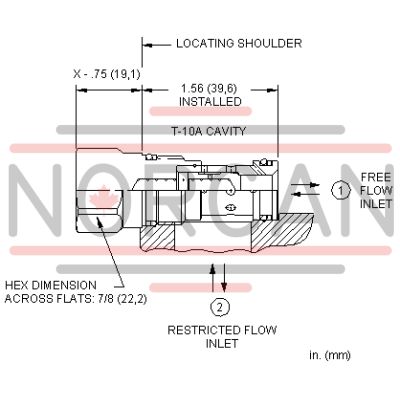

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
