SUN HYDRAULICS
CNDBXBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

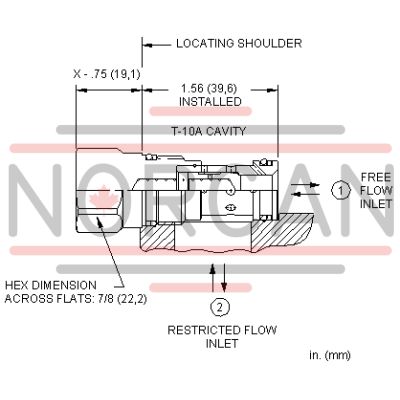

The Sun Hydraulics CNDBXBV (CNDBXBV) is a specialized hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at both ports. This model stands out in the Sun Hydraulics lineup due to its use of a deeper relief style cavity, distinguishing it from other check valves by not being interchangeable with those that use standard cavities. The CNDBXBV features a free flow from port 1 to port 2, while flow from port 2 to port 1 is regulated by a customer-specified orifice, which can range from .016 to .062 inches (0.4 to 1.6 mm). The specific orifice diameter chosen by the customer is conveniently stamped on one of the hex faces of the cartridge for easy identification. This valve is built with Sun's floating style construction that minimizes the risk of internal parts binding, which could be caused by excessive installation torque or variations in cavity/cartridge machining. This design enhancement ensures reliable operation and longevity even under demanding conditions. The valve's maximum flow capacity is rated at 15 gpm (60 L/min), and it requires an installation torque between 30 and 35 lbf ft (41 - 47 Nm). For sealing solutions, it utilizes a Viton kit specified as part number: 990010006. Overall, the CNDBXBV model is engineered for applications requiring precise control over hydraulic flow with robust performance specifications to ensure reliability and efficiency in its operations.
