SUN HYDRAULICS
CNDBXDN
$40.61 USD
- SUN HYDRAULICS
- Material:CNDBXDN
- Model:CNDB-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDBXDN (CNDBXDN) is a specialized check valve designed for high-pressure hydraulic systems. This valve allows free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the opposite direction, from port 2 to port 1. The orifice range for this model spans from 0.016 inches to 0.062 inches (0.4 mm to 1.6 mm), allowing customization based on specific flow requirements. Engineered for durability and performance, the CNDBXDN can handle a maximum operating pressure of up to 5000 psi (350 bar) at both ports. It features Sun Hydraulics' unique floating style construction which minimizes potential internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This valve is distinct in its use of Sun's deeper relief style cavity, which means it does not interchange with other standard check valves in Sun's line, ensuring specific application suitability and enhanced performance reliability. Each valve has the specified orifice diameter stamped on one of its hex faces for easy identification during installation or maintenance. Additionally, the CNDBXDN incorporates a T10A cavity and belongs to Series 1, with a capacity of up to 15 gpm (60 L/min). The valve hex size is specified at 7/8 inches (22.2 mm), and it requires an installation torque between 30 -35 lbf ft (41 -47 Nm). For sealing solutions, this model uses Viton cartridges from the kit number 990010006, ensuring high compatibility and performance under various operating conditions.
The Sun Hydraulics CNDBXDN (CNDBXDN) is a specialized check valve designed for high-pressure hydraulic systems. This valve allows free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the opposite direction, from port 2 to port 1. The orifice range for this model spans from 0.016 inches to 0.062 inches (0.4 mm to 1.6 mm), allowing customization based on specific flow requirements. Engineered for durability and performance, the CNDBXDN can handle a maximum operating pressure of up to 5000 psi (350 bar) at both ports. It features Sun Hydraulics' unique floating style construction which minimizes potential internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This valve is distinct in its use of Sun's deeper relief style cavity, which means it does not interchange with other standard check valves in Sun's line, ensuring specific application suitability and enhanced performance reliability. Each valve has the specified orifice diameter stamped on one of its hex faces for easy identification during installation or maintenance. Additionally, the CNDBXDN incorporates a T10A cavity and belongs to Series 1, with a capacity of up to 15 gpm (60 L/min). The valve hex size is specified at 7/8 inches (22.2 mm), and it requires an installation torque between 30 -35 lbf ft (41 -47 Nm). For sealing solutions, this model uses Viton cartridges from the kit number 990010006, ensuring high compatibility and performance under various operating conditions.

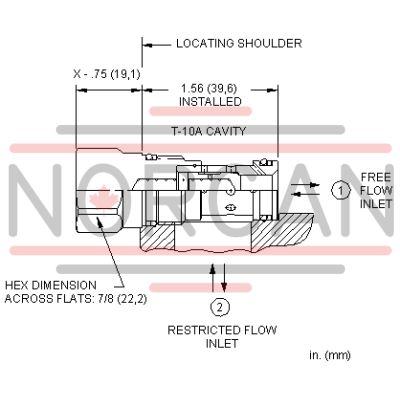

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
