SUN HYDRAULICS
CNDBXDV
$47.06 USD
- SUN HYDRAULICS
- Material:CNDBXDV
- Model:CNDB-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDBXDV (CNDBXDV) is a specialized check valve designed for high-pressure hydraulic systems, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This model stands out due to its unique construction using the deeper relief style cavity, distinct from other Sun Hydraulics' check valves, thus not interchangeable with them. The CNDBXDV features a free flow from port 1 to port 2 and includes a customer-specified orifice to control flow in the opposite direction. The orifice size can range between .016 to .062 inches (0.4 to 1.6 mm), tailored to specific application needs, and is clearly marked on one of the cartridge's hex faces for easy identification. This valve showcases Sun's floating style construction which significantly reduces the risk of internal parts binding due to variations in installation torque or discrepancies in cavity/cartridge machining. Such design enhances operational reliability and longevity even under rigorous conditions. With a maximum flow capacity of 15 gpm (60 L/min), the CNDBXDV is equipped for efficient fluid management in various hydraulic configurations. Additionally, the valve has specific installation requirements with a recommended torque of 30-35 lbf ft (41-47 Nm) and utilizes a T10A cavity series. The valve hex size is also standardized at 7/8 inches (22.2 mm). For maintenance and replacements, Viton seal kits are compatible with this model, ensuring robust sealing and performance continuity across applications where high thermal resistance and chemical compatibility are necessary.
The Sun Hydraulics CNDBXDV (CNDBXDV) is a specialized check valve designed for high-pressure hydraulic systems, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This model stands out due to its unique construction using the deeper relief style cavity, distinct from other Sun Hydraulics' check valves, thus not interchangeable with them. The CNDBXDV features a free flow from port 1 to port 2 and includes a customer-specified orifice to control flow in the opposite direction. The orifice size can range between .016 to .062 inches (0.4 to 1.6 mm), tailored to specific application needs, and is clearly marked on one of the cartridge's hex faces for easy identification. This valve showcases Sun's floating style construction which significantly reduces the risk of internal parts binding due to variations in installation torque or discrepancies in cavity/cartridge machining. Such design enhances operational reliability and longevity even under rigorous conditions. With a maximum flow capacity of 15 gpm (60 L/min), the CNDBXDV is equipped for efficient fluid management in various hydraulic configurations. Additionally, the valve has specific installation requirements with a recommended torque of 30-35 lbf ft (41-47 Nm) and utilizes a T10A cavity series. The valve hex size is also standardized at 7/8 inches (22.2 mm). For maintenance and replacements, Viton seal kits are compatible with this model, ensuring robust sealing and performance continuity across applications where high thermal resistance and chemical compatibility are necessary.

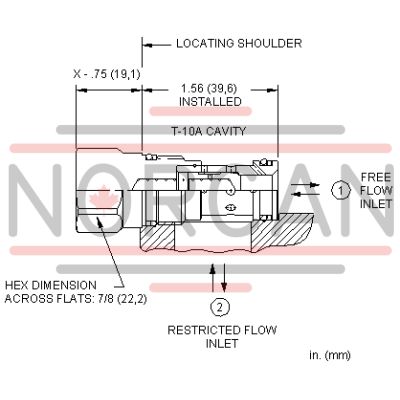

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
