SUN HYDRAULICS
CNDBXEV
$45.07 USD
- SUN HYDRAULICS
- Material:CNDBXEV
- Model:CNDB-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDBXEV (CNDBXEV) is a highly specialized hydraulic check valve designed for precise fluid control in hydraulic systems. This model features a unique free flow from port 1 to port 2, with a customer-specified orifice to restrict flow in the opposite direction, ensuring tailored performance for specific applications. The valve's capacity is rated at 15 gpm/60 L/min, and it can handle maximum operating pressures up to 5000 psi/350 bar, suitable for high-pressure environments. Distinctively, the CNDBXEV utilizes Sun Hydraulics' deeper relief style cavity which makes it non-interchangeable with other check valves in Sun's product line. This design choice underscores its specific application capabilities and integration requirements. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces, adding to the ease of identification and maintenance. In terms of construction, the CNDBXEV incorporates Sun\u2019s floating style design which minimizes potential internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances reliability and longevity by reducing mechanical stresses within the system. The valve is designed with a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm), ensuring secure and straightforward installation. Additionally equipped with Viton seals (Seal kit Cartridge Viton: 990010006), this model offers excellent resistance against high temperatures and chemical degradation, making it suitable for challenging operating conditions where durability is paramount. The CNDBXEV represents a robust solution for hydraulic systems requiring precise backflow prevention with customizable flow restrictions.
The Sun Hydraulics CNDBXEV (CNDBXEV) is a highly specialized hydraulic check valve designed for precise fluid control in hydraulic systems. This model features a unique free flow from port 1 to port 2, with a customer-specified orifice to restrict flow in the opposite direction, ensuring tailored performance for specific applications. The valve's capacity is rated at 15 gpm/60 L/min, and it can handle maximum operating pressures up to 5000 psi/350 bar, suitable for high-pressure environments. Distinctively, the CNDBXEV utilizes Sun Hydraulics' deeper relief style cavity which makes it non-interchangeable with other check valves in Sun's product line. This design choice underscores its specific application capabilities and integration requirements. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces, adding to the ease of identification and maintenance. In terms of construction, the CNDBXEV incorporates Sun\u2019s floating style design which minimizes potential internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances reliability and longevity by reducing mechanical stresses within the system. The valve is designed with a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm), ensuring secure and straightforward installation. Additionally equipped with Viton seals (Seal kit Cartridge Viton: 990010006), this model offers excellent resistance against high temperatures and chemical degradation, making it suitable for challenging operating conditions where durability is paramount. The CNDBXEV represents a robust solution for hydraulic systems requiring precise backflow prevention with customizable flow restrictions.

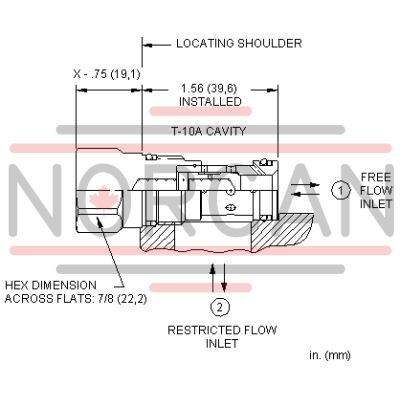

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
