SUN HYDRAULICS
CNDBXFN
$40.61 USD
- SUN HYDRAULICS
- Material:CNDBXFN
- Model:CNDB-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDBXFN (CNDBXFN) is a specialized check valve designed for high-pressure hydraulic applications, capable of handling up to 5000 psi (350 bar) at both inlet and outlet ports. This model stands out due to its use of a deeper relief style cavity which is not interchangeable with other Sun check valves, ensuring specific fit and function for demanding uses. It features a free flow from port 1 to port 2, while flow from port 2 to port 1 is controlled via a customer-specified orifice, with available sizes ranging from .016 to .062 inches (0.4 to 1.6 mm). The specified orifice diameter is conveniently stamped on one of the hex faces of the cartridge for easy identification. The CNDBXFN incorporates Sun's floating style construction which minimizes internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and performance of the valve in varied operational conditions. The valve has a maximum flow capacity of 15 gpm (60 L/min), and it requires an installation torque between 30 - 35 lbf.ft (41 - 47 Nm). For sealing, it uses a Viton cartridge kit, ensuring robust performance in diverse environments. This model utilizes the T10A cavity and belongs to Series 1, featuring a valve hex size of 7/8 inches (22.2 mm), tailored for secure installation and maintenance ease. The CNDBXFN is ideal for applications requiring precise control over fluid handling with high reliability under pressure, making it suitable for advanced hydraulic systems where performance and durability are critical.
The Sun Hydraulics CNDBXFN (CNDBXFN) is a specialized check valve designed for high-pressure hydraulic applications, capable of handling up to 5000 psi (350 bar) at both inlet and outlet ports. This model stands out due to its use of a deeper relief style cavity which is not interchangeable with other Sun check valves, ensuring specific fit and function for demanding uses. It features a free flow from port 1 to port 2, while flow from port 2 to port 1 is controlled via a customer-specified orifice, with available sizes ranging from .016 to .062 inches (0.4 to 1.6 mm). The specified orifice diameter is conveniently stamped on one of the hex faces of the cartridge for easy identification. The CNDBXFN incorporates Sun's floating style construction which minimizes internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and performance of the valve in varied operational conditions. The valve has a maximum flow capacity of 15 gpm (60 L/min), and it requires an installation torque between 30 - 35 lbf.ft (41 - 47 Nm). For sealing, it uses a Viton cartridge kit, ensuring robust performance in diverse environments. This model utilizes the T10A cavity and belongs to Series 1, featuring a valve hex size of 7/8 inches (22.2 mm), tailored for secure installation and maintenance ease. The CNDBXFN is ideal for applications requiring precise control over fluid handling with high reliability under pressure, making it suitable for advanced hydraulic systems where performance and durability are critical.

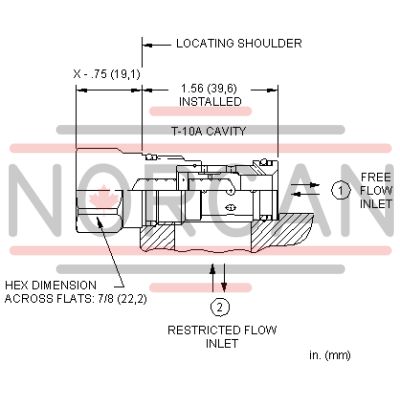

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .062 in.0,4 - 1,6 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
