SUN HYDRAULICS
CNDCLDN
$41.00 USD
- SUN HYDRAULICS
- Material:CNDCLDN
- Model:CNDC-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDCLDN (CNDCLDN) is a high-performance hydraulic check valve designed for robust fluid control in various applications. This two-port check valve facilitates free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction, from port 2 to port 1. The specified orifice diameter range for this model spans from 0.016 inches (0.4 mm) to 0.107 inches (2.7 mm), allowing for precise customization based on specific system requirements. Constructed to handle maximum operating pressures up to 5000 psi (350 bar) and flow capacities up to 15 gpm (60 L/min), the CNDCLDN is suitable for demanding environments where high pressure and flow are expected. The model features Sun's innovative floating style construction which minimizes internal part binding due to variations in installation torque or cavity/cartridge machining, enhancing the valve's reliability and performance longevity. The cartridge of the CNDCLDN is corrosion-resistant, making it ideal for use in corrosive environments\u2014a critical feature for industries requiring durable hydraulic components that can withstand harsh conditions. Additionally, the valve's hex size is 7/8 inch (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). For maintenance and replacements, Viton seal kits are available under part number: 990010006. In summary, the Sun Hydraulics CNDCLDN check valve offers a reliable solution for controlling fluid dynamics in hydraulic systems, ensuring both performance efficiency and durability even under high pressure and corrosive conditions.
The Sun Hydraulics CNDCLDN (CNDCLDN) is a high-performance hydraulic check valve designed for robust fluid control in various applications. This two-port check valve facilitates free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction, from port 2 to port 1. The specified orifice diameter range for this model spans from 0.016 inches (0.4 mm) to 0.107 inches (2.7 mm), allowing for precise customization based on specific system requirements. Constructed to handle maximum operating pressures up to 5000 psi (350 bar) and flow capacities up to 15 gpm (60 L/min), the CNDCLDN is suitable for demanding environments where high pressure and flow are expected. The model features Sun's innovative floating style construction which minimizes internal part binding due to variations in installation torque or cavity/cartridge machining, enhancing the valve's reliability and performance longevity. The cartridge of the CNDCLDN is corrosion-resistant, making it ideal for use in corrosive environments\u2014a critical feature for industries requiring durable hydraulic components that can withstand harsh conditions. Additionally, the valve's hex size is 7/8 inch (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). For maintenance and replacements, Viton seal kits are available under part number: 990010006. In summary, the Sun Hydraulics CNDCLDN check valve offers a reliable solution for controlling fluid dynamics in hydraulic systems, ensuring both performance efficiency and durability even under high pressure and corrosive conditions.

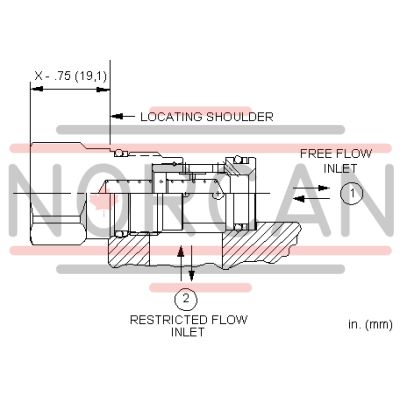

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .107 in.0,4 - 2,7 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
