SUN HYDRAULICS
CNDEXAN
$56.09 USD
- SUN HYDRAULICS
- Material:CNDEXAN
- Model:CNDE-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDEXAN (CNDEXAN) is a sophisticated hydraulic valve designed for precise control in fluid power applications. This spring-biased closed, pilot-to-close check cartridge valve features a bypass orifice, which customers can specify to meet their particular system requirements. The valve is engineered to allow flow from port 1 to port 2 while restricting flow in the reverse direction, ensuring operational stability and efficiency. It operates with a nominal pilot ratio of 1.8:1, meaning it can close against higher pressures at port 1 when appropriately piloted from port 3. Constructed with hardened steel seats, the CNDEXAN offers exceptional wear characteristics and contamination tolerance, suitable for demanding environments where durability and reliability are critical. Additionally, the valve incorporates Sun's floating style construction which minimizes potential internal binding due to installation torque or machining variations of the cavity/cartridge. Key specifications include a maximum operating pressure of 5000 psi (350 bar), and a flow capacity of up to 20 gpm (80 L/min). The valve fits into a T11A cavity and supports an orifice range from .016 to .107 inches (0.4 to 2.7 mm), allowing customization based on hydraulic system requirements. Installation requires a specific torque range between 30-35 lbf ft (41-47 Nm), ensuring secure and reliable assembly in hydraulic circuits. This model is particularly suited for applications requiring robust performance in managing directional flow and pressure control within hydraulic systems, providing both flexibility and precision in integration and operation.
The Sun Hydraulics CNDEXAN (CNDEXAN) is a sophisticated hydraulic valve designed for precise control in fluid power applications. This spring-biased closed, pilot-to-close check cartridge valve features a bypass orifice, which customers can specify to meet their particular system requirements. The valve is engineered to allow flow from port 1 to port 2 while restricting flow in the reverse direction, ensuring operational stability and efficiency. It operates with a nominal pilot ratio of 1.8:1, meaning it can close against higher pressures at port 1 when appropriately piloted from port 3. Constructed with hardened steel seats, the CNDEXAN offers exceptional wear characteristics and contamination tolerance, suitable for demanding environments where durability and reliability are critical. Additionally, the valve incorporates Sun's floating style construction which minimizes potential internal binding due to installation torque or machining variations of the cavity/cartridge. Key specifications include a maximum operating pressure of 5000 psi (350 bar), and a flow capacity of up to 20 gpm (80 L/min). The valve fits into a T11A cavity and supports an orifice range from .016 to .107 inches (0.4 to 2.7 mm), allowing customization based on hydraulic system requirements. Installation requires a specific torque range between 30-35 lbf ft (41-47 Nm), ensuring secure and reliable assembly in hydraulic circuits. This model is particularly suited for applications requiring robust performance in managing directional flow and pressure control within hydraulic systems, providing both flexibility and precision in integration and operation.
This valve is a spring biased closed, pilot-to-close check cartridge with a bypass orifice. It incorporates a steel seat and is non-vented. The valve allows flow from port 1 to port 2 and restricts flow from port 2 to port 1. Pressure at the pilot (port 3) opposes pressure at port 1 at a ratio of 1.8:1. Pressure at port 2 directly opposes the pilot pressure. Note: The bypass orifice diameter is specified by the customer. See Technical Data below for the allowable orifice range.
- Features hardened steel seats for excellent wear characteristics and contamination tolerance.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

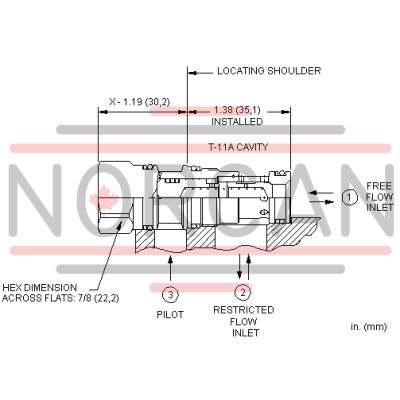

| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .107 in.0,4 - 2,7 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
