SUN HYDRAULICS
CNFAXAV
$59.17 USD
- SUN HYDRAULICS
- Material:CNFAXAV
- Model:CNFA-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFAXAV (CNFAXAV) is a high-performance hydraulic check valve designed for robust fluid control operations. This model features a free-flow, nose-to-side check valve mechanism with a bypass orifice that facilitates unrestricted flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction, from port 2 to port 1. The flexibility in specifying the orifice size allows for tailored hydraulic control suitable for various applications, with an orifice range of .016 to .127 inches (0.4 to 3.2 mm). Constructed to withstand pressures up to 5000 psi (350 bar) at both ports, the CNFAXAV is ideal for high-pressure systems. It is designed using Sun Hydraulics' floating style construction which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014ensuring reliable and consistent performance. The valve's compatibility with T5A cavity and its ability to handle up to 30 gpm (120 L/min) makes it versatile for different system capacities. The specific model also includes a Viton seal kit for enhanced durability and chemical resistance, ensuring long service life even under harsh conditions. Installation requires a torque between 45 - 50 lbf ft (61 - 68 Nm), and the valve hex size is standardized at 1-1/8 inches (28.6 mm), making it easy to integrate into existing hydraulic systems without extensive modifications. Overall, the Sun Hydraulics CNFAXAV check valve is engineered for efficient flow control in hydraulic systems requiring precise operation under high pressure and variable flow conditions. Its robust design and customizable features make it a reliable choice for demanding industrial applications.
The Sun Hydraulics CNFAXAV (CNFAXAV) is a high-performance hydraulic check valve designed for robust fluid control operations. This model features a free-flow, nose-to-side check valve mechanism with a bypass orifice that facilitates unrestricted flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction, from port 2 to port 1. The flexibility in specifying the orifice size allows for tailored hydraulic control suitable for various applications, with an orifice range of .016 to .127 inches (0.4 to 3.2 mm). Constructed to withstand pressures up to 5000 psi (350 bar) at both ports, the CNFAXAV is ideal for high-pressure systems. It is designed using Sun Hydraulics' floating style construction which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014ensuring reliable and consistent performance. The valve's compatibility with T5A cavity and its ability to handle up to 30 gpm (120 L/min) makes it versatile for different system capacities. The specific model also includes a Viton seal kit for enhanced durability and chemical resistance, ensuring long service life even under harsh conditions. Installation requires a torque between 45 - 50 lbf ft (61 - 68 Nm), and the valve hex size is standardized at 1-1/8 inches (28.6 mm), making it easy to integrate into existing hydraulic systems without extensive modifications. Overall, the Sun Hydraulics CNFAXAV check valve is engineered for efficient flow control in hydraulic systems requiring precise operation under high pressure and variable flow conditions. Its robust design and customizable features make it a reliable choice for demanding industrial applications.
Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

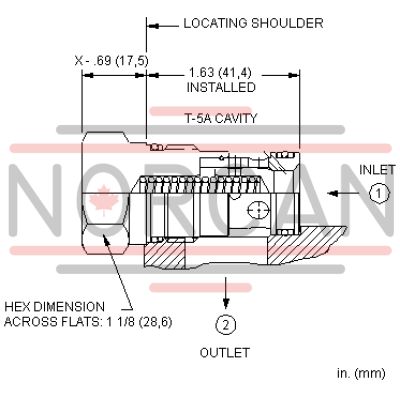

| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
