SUN HYDRAULICS
CNFAXBV
$59.17 USD
- SUN HYDRAULICS
- Material:CNFAXBV
- Model:CNFA-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFAXBV (CNFAXBV) is a high-performance check valve designed for hydraulic applications requiring reliable, unidirectional flow control. The valve facilitates free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction from port 2 to port 1. This configuration makes it suitable for systems needing controlled flow management with minimal hydraulic shock. Constructed to fit the T5A cavity and part of the Series 2 line, the CNFAXBV can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a flow capacity of up to 30 gpm (120 L/min). The orifice size range available for this model spans from .016 inches to .127 inches (0.4 mm to 3.2 mm), providing flexibility in application-specific hydraulic control. The valve is engineered using Sun\u2019s floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures long-term reliability and performance consistency in demanding operational conditions. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification during maintenance or system checks. Installation specifications include a valve hex size of 1 1/8 inches (28.6 mm) and an installation torque range between 45 and 50 lbf.ft (61 - 68 Nm). For sealing, it utilizes a Viton kit designated as part number 990203006, ensuring robust performance even under varying environmental conditions within hydraulic systems. This valve is ideal for applications where precise fluid control is essential, leveraging its design and material properties to provide effective and efficient operation across a broad range of settings.
The Sun Hydraulics CNFAXBV (CNFAXBV) is a high-performance check valve designed for hydraulic applications requiring reliable, unidirectional flow control. The valve facilitates free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction from port 2 to port 1. This configuration makes it suitable for systems needing controlled flow management with minimal hydraulic shock. Constructed to fit the T5A cavity and part of the Series 2 line, the CNFAXBV can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a flow capacity of up to 30 gpm (120 L/min). The orifice size range available for this model spans from .016 inches to .127 inches (0.4 mm to 3.2 mm), providing flexibility in application-specific hydraulic control. The valve is engineered using Sun\u2019s floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures long-term reliability and performance consistency in demanding operational conditions. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification during maintenance or system checks. Installation specifications include a valve hex size of 1 1/8 inches (28.6 mm) and an installation torque range between 45 and 50 lbf.ft (61 - 68 Nm). For sealing, it utilizes a Viton kit designated as part number 990203006, ensuring robust performance even under varying environmental conditions within hydraulic systems. This valve is ideal for applications where precise fluid control is essential, leveraging its design and material properties to provide effective and efficient operation across a broad range of settings.
Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

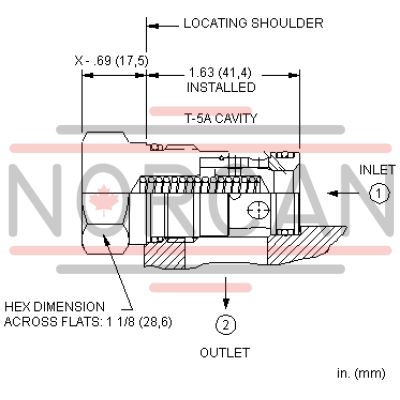

| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
