SUN HYDRAULICS
CNFAXDN
$52.72 USD
- SUN HYDRAULICS
- Material:CNFAXDN
- Model:CNFA-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFAXDN (CNFAXDN) is a high-performance hydraulic check valve designed for robust fluid control in hydraulic systems. This model features a freeflow, nose-to-side configuration that allows unobstructed flow from port 1 to port 2, coupled with a customer-specified orifice that controls flow in the reverse direction, from port 2 to port 1. The specific orifice diameter provided by the customer is precisely stamped on one of the cartridge's hex faces for easy identification and maintenance. Constructed to fit within a T5A cavity and belonging to Series 2, the CNFAXDN valve is engineered to handle a maximum flow capacity of 30 gpm (120 L/min) and withstand pressures up to 5000 psi (350 bar). The available orifice range spans from .016 to .127 inches (0.4 to 3.2 mm), making it adaptable for various applications requiring precise flow control. The valve installation demands a torque of between 45 - 50 lbf ft (61 - 68 Nm), ensuring secure and reliable fitting. Additionally, this model incorporates Sun's innovative floating style construction which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the overall reliability and longevity of the valve in demanding operational conditions. The CNFAXDN utilizes Viton seals (part number: 990203006) for superior chemical resistance and durability under high temperatures and pressures, ensuring consistent performance in a wide range of industrial applications.
The Sun Hydraulics CNFAXDN (CNFAXDN) is a high-performance hydraulic check valve designed for robust fluid control in hydraulic systems. This model features a freeflow, nose-to-side configuration that allows unobstructed flow from port 1 to port 2, coupled with a customer-specified orifice that controls flow in the reverse direction, from port 2 to port 1. The specific orifice diameter provided by the customer is precisely stamped on one of the cartridge's hex faces for easy identification and maintenance. Constructed to fit within a T5A cavity and belonging to Series 2, the CNFAXDN valve is engineered to handle a maximum flow capacity of 30 gpm (120 L/min) and withstand pressures up to 5000 psi (350 bar). The available orifice range spans from .016 to .127 inches (0.4 to 3.2 mm), making it adaptable for various applications requiring precise flow control. The valve installation demands a torque of between 45 - 50 lbf ft (61 - 68 Nm), ensuring secure and reliable fitting. Additionally, this model incorporates Sun's innovative floating style construction which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the overall reliability and longevity of the valve in demanding operational conditions. The CNFAXDN utilizes Viton seals (part number: 990203006) for superior chemical resistance and durability under high temperatures and pressures, ensuring consistent performance in a wide range of industrial applications.
Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

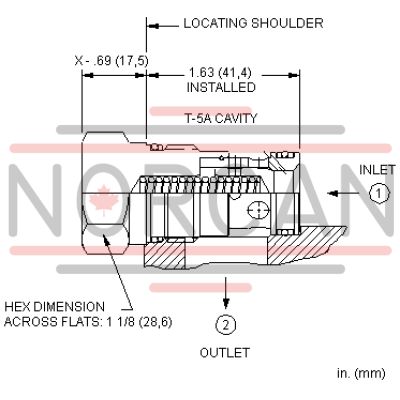

| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
