SUN HYDRAULICS
CNFAXDV
$59.17 USD
- SUN HYDRAULICS
- Material:CNFAXDV
- Model:CNFA-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFAXDV (CNFAXDV) is a specialized hydraulic check valve designed for robust performance in various hydraulic systems. This valve facilitates free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The orifice range is quite flexible, spanning from 0.4 mm to 3.2 mm, allowing for precise control tailored to specific system requirements. Rated for maximum operating pressures up to 5000 psi (350 bar) and capable of handling flow capacities up to 30 gpm (120 L/min), the CNFAXDV is suitable for high-pressure applications. The valve's construction includes Sun's innovative floating style design which helps prevent internal parts from binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. Furthermore, the valve's dimensions and installation specifications are clearly defined, with a hex size of 1-1/8 inches (28.6 mm) and an installation torque requirement between 45 and 50 lbf ft (61 - 68 Nm). This precision ensures compatibility and ease of installation across various system configurations where T5A cavity series are used. The CNFAXDV also stands out due to its versatility in application; it can be utilized in systems where reverse flow needs control without compromising the free-flow requirement in one direction. Its robust design and precise manufacturing make it a reliable component in demanding hydraulic circuits, ensuring efficient operation and long-term durability.
The Sun Hydraulics CNFAXDV (CNFAXDV) is a specialized hydraulic check valve designed for robust performance in various hydraulic systems. This valve facilitates free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The orifice range is quite flexible, spanning from 0.4 mm to 3.2 mm, allowing for precise control tailored to specific system requirements. Rated for maximum operating pressures up to 5000 psi (350 bar) and capable of handling flow capacities up to 30 gpm (120 L/min), the CNFAXDV is suitable for high-pressure applications. The valve's construction includes Sun's innovative floating style design which helps prevent internal parts from binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. Furthermore, the valve's dimensions and installation specifications are clearly defined, with a hex size of 1-1/8 inches (28.6 mm) and an installation torque requirement between 45 and 50 lbf ft (61 - 68 Nm). This precision ensures compatibility and ease of installation across various system configurations where T5A cavity series are used. The CNFAXDV also stands out due to its versatility in application; it can be utilized in systems where reverse flow needs control without compromising the free-flow requirement in one direction. Its robust design and precise manufacturing make it a reliable component in demanding hydraulic circuits, ensuring efficient operation and long-term durability.
Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

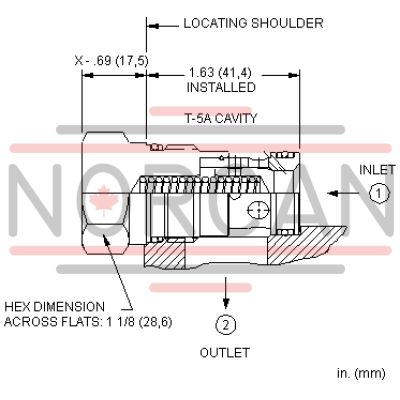

| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
