SUN HYDRAULICS
CNFBXCN
$55.30 USD
- SUN HYDRAULICS
- Material:CNFBXCN
- Model:CNFB-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFBXCN (CNFBXCN) is a specialized hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This valve is distinct within Sun Hydraulics' product line due to its use of a deeper relief style cavity, which is not interchangeable with other Sun check valves. The CNFBXCN features a customer-specified bypass orifice that allows free flow from port 1 to port 2 while restricting flow in the reverse direction. The specific orifice diameter is conveniently stamped on one of the cartridge's hex faces, ensuring easy identification and compliance with system requirements. The valve supports a maximum flow capacity of 30 gpm (120 L/min) and offers an orifice range from .016 to .078 inches (0.4 to 2.0 mm). It has been engineered using Sun's floating style construction, which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and performance of the valve in demanding operational conditions. Additionally, the CNFBXCN incorporates Viton seals for improved durability and chemical resistance, suitable for various hydraulic fluids. The valve requires an installation torque between 45 and 50 lbf.ft (61 - 68 Nm), and it fits into a T3A cavity with a hex size of 1-1/8 inches (28.6 mm). This product is ideal for applications requiring precise control over fluid handling and pressure management in hydraulic systems.
The Sun Hydraulics CNFBXCN (CNFBXCN) is a specialized hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This valve is distinct within Sun Hydraulics' product line due to its use of a deeper relief style cavity, which is not interchangeable with other Sun check valves. The CNFBXCN features a customer-specified bypass orifice that allows free flow from port 1 to port 2 while restricting flow in the reverse direction. The specific orifice diameter is conveniently stamped on one of the cartridge's hex faces, ensuring easy identification and compliance with system requirements. The valve supports a maximum flow capacity of 30 gpm (120 L/min) and offers an orifice range from .016 to .078 inches (0.4 to 2.0 mm). It has been engineered using Sun's floating style construction, which minimizes potential internal parts binding caused by excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and performance of the valve in demanding operational conditions. Additionally, the CNFBXCN incorporates Viton seals for improved durability and chemical resistance, suitable for various hydraulic fluids. The valve requires an installation torque between 45 and 50 lbf.ft (61 - 68 Nm), and it fits into a T3A cavity with a hex size of 1-1/8 inches (28.6 mm). This product is ideal for applications requiring precise control over fluid handling and pressure management in hydraulic systems.
Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

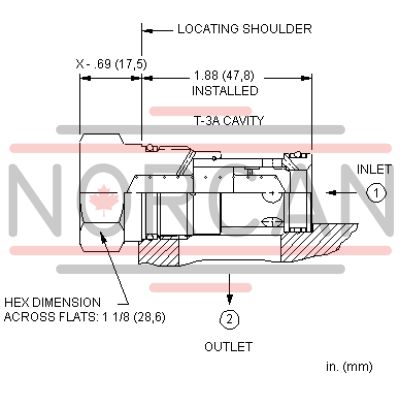

| Cavity | T-3A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .078 in.0,4 - 2,0 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
