CNFBXCV
$61.75 USD
- SUN HYDRAULICS
- Material:CNFBXCV
- Model:CNFB-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFBXCV (CNFBXCV) is a specialized hydraulic check valve designed for precise fluid control in high-pressure systems. This valve allows unidirectional free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction. The orifice range for this model spans from 0.016 to 0.078 inches (0.4 to 2.0 mm), providing flexibility in application according to specific system requirements. Engineered for robust performance, the CNFBXCV can handle maximum operating pressures up to 5000 psi (350 bar) at both ports, with a capacity to accommodate flow rates up to 30 gpm (120 L/min). This model is distinct from other Sun Hydraulics check valves due to its utilization of a deeper relief style cavity (T3A Series 2), which means it is not interchangeable with other Sun products that do not share this cavity specification. Additionally, the valve features Sun\u2019s floating style construction which helps minimize internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and longevity of the valve under varying operational conditions. For installation, the valve requires a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 and 50 lbf\u00b7ft (61 - 68 Nm). The specific orifice diameter selected by the customer is conveniently stamped on one of the hex faces of the cartridge, ensuring ease of identification and maintenance. Overall, the CNFBXCV is an essential component for systems requiring precise flow control and high-pressure capability, making it suitable for a variety of demanding hydraulic applications.
The Sun Hydraulics CNFBXCV (CNFBXCV) is a specialized hydraulic check valve designed for precise fluid control in high-pressure systems. This valve allows unidirectional free flow from port 1 to port 2, while a customer-specified orifice restricts flow in the reverse direction. The orifice range for this model spans from 0.016 to 0.078 inches (0.4 to 2.0 mm), providing flexibility in application according to specific system requirements. Engineered for robust performance, the CNFBXCV can handle maximum operating pressures up to 5000 psi (350 bar) at both ports, with a capacity to accommodate flow rates up to 30 gpm (120 L/min). This model is distinct from other Sun Hydraulics check valves due to its utilization of a deeper relief style cavity (T3A Series 2), which means it is not interchangeable with other Sun products that do not share this cavity specification. Additionally, the valve features Sun\u2019s floating style construction which helps minimize internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and longevity of the valve under varying operational conditions. For installation, the valve requires a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 and 50 lbf\u00b7ft (61 - 68 Nm). The specific orifice diameter selected by the customer is conveniently stamped on one of the hex faces of the cartridge, ensuring ease of identification and maintenance. Overall, the CNFBXCV is an essential component for systems requiring precise flow control and high-pressure capability, making it suitable for a variety of demanding hydraulic applications.
Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- This cartridge differs from Sun's existing check valve product line in that it utilizes Sun's deeper relief style cavity and, therefore, is not interchangeable.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

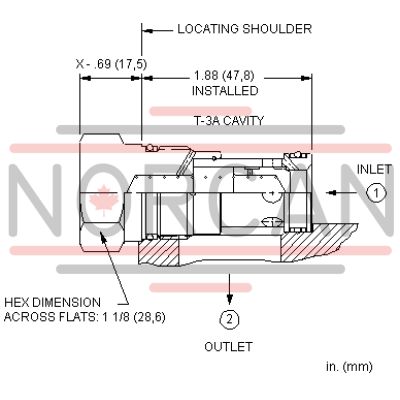

| Cavity | T-3A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .078 in.0,4 - 2,0 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
