SUN HYDRAULICS
CNFCXBV
$53.51 USD
- SUN HYDRAULICS
- Material:CNFCXBV
- Model:CNFC-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFCXBV (CNFCXBV) is a high-performance hydraulic check valve designed for robust fluid control in various applications. Featuring a free flow from port 1 to port 2 and a customer-specified orifice to restrict flow in the reverse direction, this valve ensures precise fluid handling and control. The specified orifice range can vary between 0.4 mm to 3.2 mm, allowing customization based on specific system requirements. Rated for up to 5000 psi (350 bar) at both ports, the CNFCXBV is capable of handling substantial pressure levels, making it suitable for demanding environments. This model incorporates Sun's floating style construction which minimizes the potential for internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the valve's reliability and longevity in challenging operational conditions. The corrosion-resistant versions of these valves are identified by model code suffixes AP or LH, tailored for use in corrosive environments. With a maximum capacity of 30 gpm (120 L/min), the CNFCXBV is well-suited for systems requiring efficient flow management. The valve's hex size is 1-1/8 inches (28.6 mm), and it requires an installation torque of between 45 - 50 lbf.ft (61 - 68 Nm). Additionally, it uses Viton seals (part number: 990203006) ensuring high resistance against heat and chemicals, thus maintaining seal integrity and performance over time. This check valve is an essential component for hydraulic circuits where precise flow regulation and durability are critical.
The Sun Hydraulics CNFCXBV (CNFCXBV) is a high-performance hydraulic check valve designed for robust fluid control in various applications. Featuring a free flow from port 1 to port 2 and a customer-specified orifice to restrict flow in the reverse direction, this valve ensures precise fluid handling and control. The specified orifice range can vary between 0.4 mm to 3.2 mm, allowing customization based on specific system requirements. Rated for up to 5000 psi (350 bar) at both ports, the CNFCXBV is capable of handling substantial pressure levels, making it suitable for demanding environments. This model incorporates Sun's floating style construction which minimizes the potential for internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the valve's reliability and longevity in challenging operational conditions. The corrosion-resistant versions of these valves are identified by model code suffixes AP or LH, tailored for use in corrosive environments. With a maximum capacity of 30 gpm (120 L/min), the CNFCXBV is well-suited for systems requiring efficient flow management. The valve's hex size is 1-1/8 inches (28.6 mm), and it requires an installation torque of between 45 - 50 lbf.ft (61 - 68 Nm). Additionally, it uses Viton seals (part number: 990203006) ensuring high resistance against heat and chemicals, thus maintaining seal integrity and performance over time. This check valve is an essential component for hydraulic circuits where precise flow regulation and durability are critical.

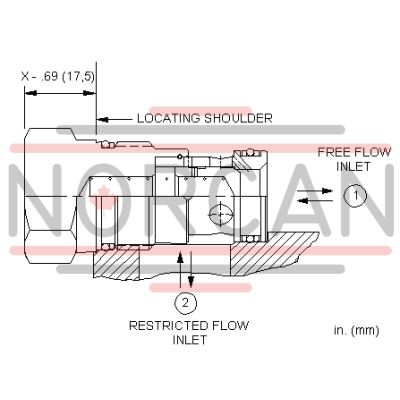

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
