SUN HYDRAULICS
CNFCXCV
$51.53 USD
- SUN HYDRAULICS
- Material:CNFCXCV
- Model:CNFC-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFCXCV (CNFCXCV) is a high-performance hydraulic check valve designed for robust and efficient fluid control in various hydraulic systems. This valve features a free-flow, nose-to-side configuration that allows unrestricted flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The specified orifice diameter range for this model is between 0.4 mm and 3.2 mm, ensuring adaptability to different system requirements and is clearly marked on one of the cartridge\u2019s hex faces for easy identification. Constructed to operate under high-pressure conditions, the CNFCXCV can handle up to 5000 psi (350 bar) at both ports, making it suitable for demanding applications. It has a flow capacity of up to 30 gpm (120 L/min), which accommodates substantial fluid volumes, ensuring efficient system performance. The valve is designed with Sun Hydraulics\u2019 floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining, enhancing durability and reliability. This model uses Viton seals (part number: 990203006) for enhanced corrosion resistance and durability in corrosive environments. The valve's cavity type is T5A and it belongs to the Series 2 category of Sun Hydraulics\u2019 products. Installation requires a torque between 45 and 50 lbf\u00b7ft (61 - 68 Nm), with a hex size of 1-1/8 inches (28.6 mm). This precision-engineered check valve is ideal for applications requiring reliable one-way flow control where fluid compatibility and environmental resilience are critical.
The Sun Hydraulics CNFCXCV (CNFCXCV) is a high-performance hydraulic check valve designed for robust and efficient fluid control in various hydraulic systems. This valve features a free-flow, nose-to-side configuration that allows unrestricted flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction, from port 2 to port 1. The specified orifice diameter range for this model is between 0.4 mm and 3.2 mm, ensuring adaptability to different system requirements and is clearly marked on one of the cartridge\u2019s hex faces for easy identification. Constructed to operate under high-pressure conditions, the CNFCXCV can handle up to 5000 psi (350 bar) at both ports, making it suitable for demanding applications. It has a flow capacity of up to 30 gpm (120 L/min), which accommodates substantial fluid volumes, ensuring efficient system performance. The valve is designed with Sun Hydraulics\u2019 floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining, enhancing durability and reliability. This model uses Viton seals (part number: 990203006) for enhanced corrosion resistance and durability in corrosive environments. The valve's cavity type is T5A and it belongs to the Series 2 category of Sun Hydraulics\u2019 products. Installation requires a torque between 45 and 50 lbf\u00b7ft (61 - 68 Nm), with a hex size of 1-1/8 inches (28.6 mm). This precision-engineered check valve is ideal for applications requiring reliable one-way flow control where fluid compatibility and environmental resilience are critical.

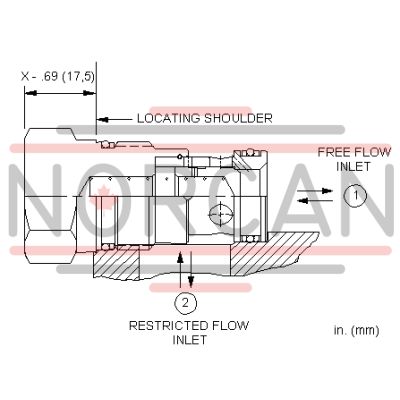

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
