SUN HYDRAULICS
CNFCXEV
$51.53 USD
- SUN HYDRAULICS
- Material:CNFCXEV
- Model:CNFC-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFCXEV (CNFCXEV) is a versatile check valve designed for hydraulic systems, ensuring efficient flow control and operational reliability. This model features a freeflow design that allows unrestricted flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specified orifice diameter can be found stamped on one of the cartridge's hex faces, allowing for easy verification and maintenance. Constructed to handle a maximum operating pressure of up to 5000 psi (350 bar) at both ports, the CNFCXEV is suitable for high-pressure applications. It has a flow capacity of up to 30 gpm (120 L/min), making it capable of handling significant fluid volumes efficiently. The valve is housed in a T5A cavity and belongs to the Series 2 lineup from Sun Hydraulics. Further enhancing its durability and suitability for challenging environments, this model incorporates Sun\u2019s floating style construction. This design feature minimizes the risk of internal parts binding which can occur due to excessive installation torque or variations in cavity/cartridge machining. The corrosion-resistant options identified by model code suffixes AP or LH are specifically tailored for use in corrosive environments. With an installation torque requirement between 45 - 50 lbf ft (61 - 68 Nm) and an orifice range from .016 - .127 in (0.4 - 3.2 mm), the CNFCXEV is designed for both ease of installation and adaptability to various hydraulic setups. Its robust construction and precise engineering ensure reliable performance and longevity in demanding hydraulic applications.
The Sun Hydraulics CNFCXEV (CNFCXEV) is a versatile check valve designed for hydraulic systems, ensuring efficient flow control and operational reliability. This model features a freeflow design that allows unrestricted flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specified orifice diameter can be found stamped on one of the cartridge's hex faces, allowing for easy verification and maintenance. Constructed to handle a maximum operating pressure of up to 5000 psi (350 bar) at both ports, the CNFCXEV is suitable for high-pressure applications. It has a flow capacity of up to 30 gpm (120 L/min), making it capable of handling significant fluid volumes efficiently. The valve is housed in a T5A cavity and belongs to the Series 2 lineup from Sun Hydraulics. Further enhancing its durability and suitability for challenging environments, this model incorporates Sun\u2019s floating style construction. This design feature minimizes the risk of internal parts binding which can occur due to excessive installation torque or variations in cavity/cartridge machining. The corrosion-resistant options identified by model code suffixes AP or LH are specifically tailored for use in corrosive environments. With an installation torque requirement between 45 - 50 lbf ft (61 - 68 Nm) and an orifice range from .016 - .127 in (0.4 - 3.2 mm), the CNFCXEV is designed for both ease of installation and adaptability to various hydraulic setups. Its robust construction and precise engineering ensure reliable performance and longevity in demanding hydraulic applications.

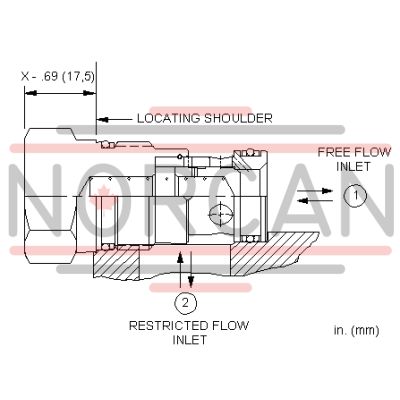

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
