SUN HYDRAULICS
CNFCXFV
$53.51 USD
- SUN HYDRAULICS
- Material:CNFCXFV
- Model:CNFC-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNFCXFV (CNFCXFV) is a versatile cartridge valve designed for hydraulic systems requiring reliable check valve functionality with the added feature of a customer-specified bypass orifice. This model allows free flow from port 1 to port 2, while the flow from port 2 to port 1 is restricted by an orifice whose diameter can be specified by the customer and is clearly stamped on one of the cartridge's hex faces for easy identification. Constructed to fit within a T5A cavity and belonging to the Series 2, this valve is capable of handling a maximum flow capacity of 30 gpm (120 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar). The available orifice range for this model spans from .016 to .127 inches (0.4 to 3.2 mm), providing flexibility in application according to system requirements. Sun Hydraulics has incorporated their floating style construction into the CNFCXFV model, which minimizes potential internal parts binding that might otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures enhanced durability and reliable performance under varying operational conditions. The valve also comes with a Viton seal kit, ensuring high resistance against wear and environmental factors, making it suitable for use in corrosive environments when specified with model code suffixes AP or LH.
The Sun Hydraulics CNFCXFV (CNFCXFV) is a versatile cartridge valve designed for hydraulic systems requiring reliable check valve functionality with the added feature of a customer-specified bypass orifice. This model allows free flow from port 1 to port 2, while the flow from port 2 to port 1 is restricted by an orifice whose diameter can be specified by the customer and is clearly stamped on one of the cartridge's hex faces for easy identification. Constructed to fit within a T5A cavity and belonging to the Series 2, this valve is capable of handling a maximum flow capacity of 30 gpm (120 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar). The available orifice range for this model spans from .016 to .127 inches (0.4 to 3.2 mm), providing flexibility in application according to system requirements. Sun Hydraulics has incorporated their floating style construction into the CNFCXFV model, which minimizes potential internal parts binding that might otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures enhanced durability and reliable performance under varying operational conditions. The valve also comes with a Viton seal kit, ensuring high resistance against wear and environmental factors, making it suitable for use in corrosive environments when specified with model code suffixes AP or LH.

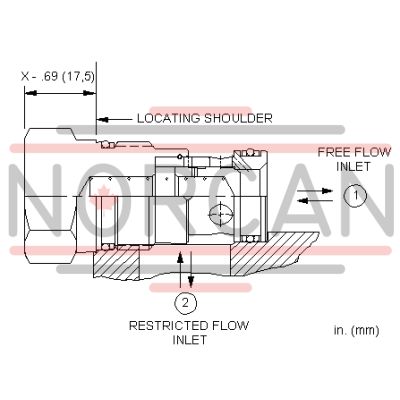

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .127 in.0,4 - 3,2 mm |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
