SUN HYDRAULICS
CNGCXDV

$95.81 USD

SUN HYDRAULICS
Material:CNGCXDV
Model:CNGC-XDV
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGCXDV (CNGCXDV) is a meticulously engineered hydraulic flow control valve, designed to provide precision in fluid management within hydraulic systems. This valve features a fixed orifice, non-pressure compensated flow control with a reverse flow check, ensuring reliable operation in various applications. The orifice diameter is customizable as per user specifications and is factory-set to ensure optimal performance tailored to specific requirements. Constructed for interchangeability within the same frame size, the CNGCXDV maintains consistent flow paths and cavities across all 2-port flow control cartridges, although cartridge extension dimensions may vary slightly from one mounting surface to another. It shares the same flow path as other Sun Hydraulics\u2019 flow controls, making it versatile for use in any corresponding manifold configurations. Key specifications include a robust operating pressure capacity of up to 5000 psi (350 bar) and a maximum flow capacity of 60 gpm (240 L/min). The available orifice range spans from 0.016 to 0.218 inches (0.4 to 5.5 mm), allowing for precise adjustments based on system requirements. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This valve model also offers options for enhanced corrosion resistance; model code suffixes AP and LH denote external components made of stainless steel and external zinc-nickel plated components respectively, catering to environments where corrosion is a concern. Overall, the Sun Hydraulics CNGCXDV valve stands out for its reliability, customizable features, and compatibility within hydraulic systems, making it an essential component for efficient fluid control in specialized applications.

Description

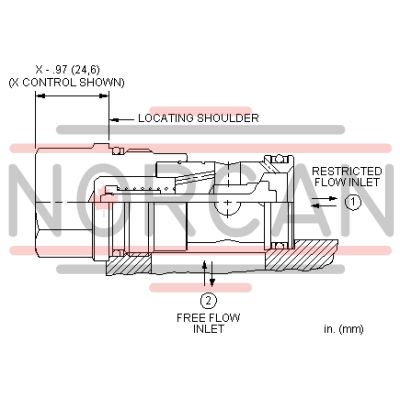

This valve is a fixed orifice, non-pressure compensated flow control with a reverse flow check. The flow setting is specified by the user and is set at the factory.

Customer must specify the orifice diameter.
All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
These are essentially check valves with bypass orifices. The flow path matches Sun's flow controls and can be used in any flow control manifolds. Valves with the opposite direction of flow can be found under check valves with bypass orifices.
Because these valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-16A
Series	3
Capacity	60 gpm240 L/min.
Maximum Operating Pressure	5000 psi350 bar
Orifice Range	.016 - .218 in.0,4 - 5,5 mm
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Model Weight	1.10 lb0,50 kg
Seal kit - Cartridge	Viton: 990-016-006

Show FAQ

What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
