The Sun Hydraulics CNGCXEV (CNGCXEV) is a specialized hydraulic flow control valve designed for precise fluid management in various applications. This fixed orifice, non-pressure compensated flow control valve includes a reverse flow check feature, ensuring versatile usage in hydraulic systems. The valve\u2019s flow setting is user-specified and factory-set according to the specified orifice diameter, which ranges from 0.016 inches to 0.218 inches (0.4 mm to 5.5 mm). This customization allows for tailored fluid control based on specific system requirements. Constructed for high-capacity operations, the CNGCXEV can handle up to 60 gallons per minute (240 L/min) and withstands a maximum operating pressure of 5000 psi (350 bar). Its robust design features Sun\u2019s floating style construction which minimizes internal part binding and potential damage due to installation torque or cavity/cartridge machining variations. The cartridge itself is designed to be interchangeable with other 2-port flow control cartridges of the same frame size, ensuring easy integration and replacement within existing systems. It also features corrosion-resistant options, with external components available in stainless steel (AP model code suffix) or zinc-nickel plated (LH model code suffix) for enhanced durability in corrosive environments. Additionally, each unit's specified orifice diameter is clearly stamped on one of the cartridge's hex faces for easy identification during maintenance or system adjustments. The valve\u2019s hex size is 1 1/4 inches (31.8 mm), and it requires an installation torque between 150 and 160 lbf ft (203 - 217 Nm). Weighing only 1.10 lbs (0.50 kg), this compact yet powerful valve ensures reliable performance and precise control across a wide range of industrial hydraulic applications.

Description

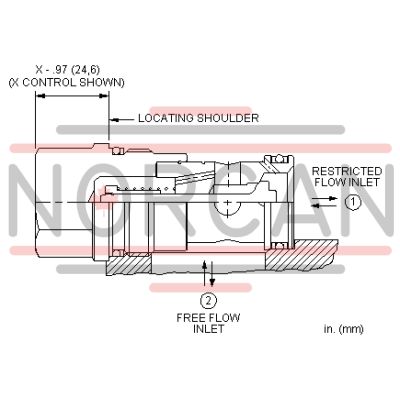

This valve is a fixed orifice, non-pressure compensated flow control with a reverse flow check. The flow setting is specified by the user and is set at the factory.

Customer must specify the orifice diameter.
All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
These are essentially check valves with bypass orifices. The flow path matches Sun's flow controls and can be used in any flow control manifolds. Valves with the opposite direction of flow can be found under check valves with bypass orifices.
Because these valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-16A
Series	3
Capacity	60 gpm240 L/min.
Maximum Operating Pressure	5000 psi350 bar
Orifice Range	.016 - .218 in.0,4 - 5,5 mm
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Model Weight	1.10 lb0,50 kg
Seal kit - Cartridge	Viton: 990-016-006

Show FAQ

What happens if I block the control flow (priority) port?	All flow is blocked, hence the term priority. The priority flow has to be satisfied.
What happens if I block the bypass port on a priority flow control?	The valve acts as a 2 port restrictive flow control.
What is the compensating pressure of Sun's flow controls?	The spring force in our flow controls equates to about 100 psi (7 bar). This is high enough to give the valves acceptable capacity (not really) and not too high for proper circuit operation. 100 psi (7 bar) is the spring force; at the upper end of the flow control's range, the drop through the valve will be as high as 250 psi (17 bar) before it starts modulating.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
What is the pressure drop through a flow control?	In a meter-in flow control circuit if the pump is set at 3000 psi and the load is 2000 psi the drop through the flow control is 1000 psi. In a meter-out circuit with the load at 2000 psi the drop through the flow control is 2000 psi.
How accurate are Sun's flow controls?	We claim +/- 10%. We set to +/- 5% in production testing to allow for differences in customers' conditions. If you want accuracy, stay in the bottom 2/3rds of the range. Our 12 gpm (45 L/min.) flow controls are quite flat at 9 gpm (34 L/min.) and dead flat below 6 gpm (23 L/min.), until you get to the bottom of the range. Below about .25 gpm (1 L/min.), spool leakage and orifice conditions start to limit accuracy.
I have a heat problem, will Sun's priority flow control help?	I am afraid not. Unless you are overflowing your current valve and correctly size ours, you are not likely to notice any improvement. Priority flow controls are not efficient devices. They are an easy way to get more than 1 source of oil from 1 pump but they can generate a lot of heat. Try to size your actuators so the pressures are similar on both the priority and the bypass circuits. If you can't do that, try to have the lower flow leg be the lower pressure. The pump pressure is determined by whichever leg is higher and if there is flow that is taking a pressure drop that is not doing work it is creating heat.
