SUN HYDRAULICS
CNGCXFV
$95.81 USD
- SUN HYDRAULICS
- Material:CNGCXFV
- Model:CNGC-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGCXFV (CNGCXFV) is a meticulously engineered hydraulic flow control valve, designed for precise fluid handling and control within hydraulic systems. This model features a fixed orifice, non-pressure compensated flow control mechanism with an integrated reverse flow check, ensuring reliable operation in various directional configurations. The valve's functionality is defined by a user-specified orifice diameter, which Sun Hydraulics customizes at their manufacturing facility based on customer requirements. Constructed to offer robust performance, the CNGCXFV can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity to manage up to 60 gpm (240 L/min). The orifice size options range from 0.016 to 0.218 inches (0.4 to 5.5 mm), allowing for customization to meet specific system requirements. Furthermore, the model incorporates Sun\u2019s floating style construction which minimizes internal part binding due to installation torque or cavity/cartridge machining inconsistencies. This valve is also designed for versatility and interchangeability within Sun\u2019s product range, fitting into any flow control manifold that matches the T16A cavity and Series 3 specifications. Its corrosion-resistant variants are especially suitable for harsh environments, available with stainless steel components (model code suffix AP) or external zinc-nickel plated components (model code suffix LH). For installation, the valve requires a torque of between 150-160 lbf ft (203-217 Nm) and has an approximate weight of 1.10 lbs (0.50 kg). Each unit\u2019s specified orifice diameter is clearly stamped on one of the hex faces of the cartridge for easy identification during maintenance or system checks.
The Sun Hydraulics CNGCXFV (CNGCXFV) is a meticulously engineered hydraulic flow control valve, designed for precise fluid handling and control within hydraulic systems. This model features a fixed orifice, non-pressure compensated flow control mechanism with an integrated reverse flow check, ensuring reliable operation in various directional configurations. The valve's functionality is defined by a user-specified orifice diameter, which Sun Hydraulics customizes at their manufacturing facility based on customer requirements. Constructed to offer robust performance, the CNGCXFV can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity to manage up to 60 gpm (240 L/min). The orifice size options range from 0.016 to 0.218 inches (0.4 to 5.5 mm), allowing for customization to meet specific system requirements. Furthermore, the model incorporates Sun\u2019s floating style construction which minimizes internal part binding due to installation torque or cavity/cartridge machining inconsistencies. This valve is also designed for versatility and interchangeability within Sun\u2019s product range, fitting into any flow control manifold that matches the T16A cavity and Series 3 specifications. Its corrosion-resistant variants are especially suitable for harsh environments, available with stainless steel components (model code suffix AP) or external zinc-nickel plated components (model code suffix LH). For installation, the valve requires a torque of between 150-160 lbf ft (203-217 Nm) and has an approximate weight of 1.10 lbs (0.50 kg). Each unit\u2019s specified orifice diameter is clearly stamped on one of the hex faces of the cartridge for easy identification during maintenance or system checks.

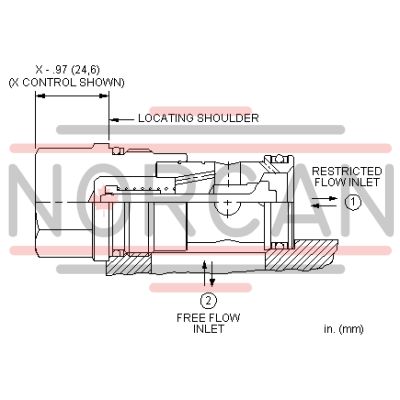

This valve is a fixed orifice, non-pressure compensated flow control with a reverse flow check. The flow setting is specified by the user and is set at the factory.
- Customer must specify the orifice diameter.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- These are essentially check valves with bypass orifices. The flow path matches Sun's flow controls and can be used in any flow control manifolds. Valves with the opposite direction of flow can be found under check valves with bypass orifices.
- Because these valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
