SUN HYDRAULICS
CNGCXZN
$91.34 USD
- SUN HYDRAULICS
- Material:CNGCXZN
- Model:CNGC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGCXZN (CNGCXZN) is a meticulously engineered hydraulic flow control valve, designed for precise fluid handling in hydraulic systems. This fixed orifice, non-pressure compensated flow control valve integrates a reverse flow check feature, ensuring versatility and reliability in application. The valve's performance is tailored to specific requirements as the orifice diameter is customized based on user specifications and permanently set during manufacturing. Constructed to fit seamlessly into any corresponding flow control manifold, the CNGCXZN model maintains compatibility across 2-port flow control cartridges of the same frame size, although cartridge extension dimensions may vary slightly. It operates by regulating the fluid flow proportionally to the square root of the pressure differential between ports 1 and 2, making it crucial for applications where consistent flow rate control is needed without external adjustments. Key technical specifications include a maximum operating pressure of 5000 psi (350 bar), an orifice range from 0.016 to 0.218 inches (0.4 to 5.5 mm), and a capacity up to 60 gpm (240 L/min). The valve features a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 - 160 lbf.ft (203 - 217 Nm). Weighing at approximately 1.10 lbs (0.50 kg), it also supports Viton seals for enhanced durability and resistance against harsh conditions. Additionally, Sun Hydraulics' CNGCXZN employs a floating style construction that minimizes internal parts binding due to installation torque or cavity/cartridge machining variations, ensuring long-lasting performance and reliability in demanding environments where precise fluid control is paramount.
The Sun Hydraulics CNGCXZN (CNGCXZN) is a meticulously engineered hydraulic flow control valve, designed for precise fluid handling in hydraulic systems. This fixed orifice, non-pressure compensated flow control valve integrates a reverse flow check feature, ensuring versatility and reliability in application. The valve's performance is tailored to specific requirements as the orifice diameter is customized based on user specifications and permanently set during manufacturing. Constructed to fit seamlessly into any corresponding flow control manifold, the CNGCXZN model maintains compatibility across 2-port flow control cartridges of the same frame size, although cartridge extension dimensions may vary slightly. It operates by regulating the fluid flow proportionally to the square root of the pressure differential between ports 1 and 2, making it crucial for applications where consistent flow rate control is needed without external adjustments. Key technical specifications include a maximum operating pressure of 5000 psi (350 bar), an orifice range from 0.016 to 0.218 inches (0.4 to 5.5 mm), and a capacity up to 60 gpm (240 L/min). The valve features a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 - 160 lbf.ft (203 - 217 Nm). Weighing at approximately 1.10 lbs (0.50 kg), it also supports Viton seals for enhanced durability and resistance against harsh conditions. Additionally, Sun Hydraulics' CNGCXZN employs a floating style construction that minimizes internal parts binding due to installation torque or cavity/cartridge machining variations, ensuring long-lasting performance and reliability in demanding environments where precise fluid control is paramount.

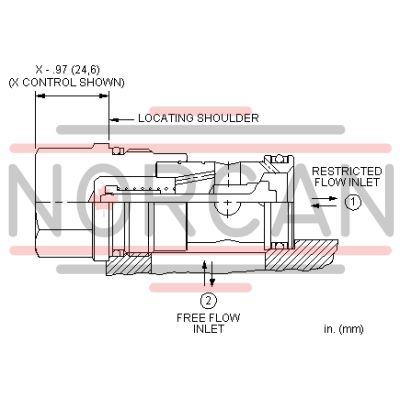

This valve is a fixed orifice, non-pressure compensated flow control with a reverse flow check. The flow setting is specified by the user and is set at the factory.
- Customer must specify the orifice diameter.
- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- These are essentially check valves with bypass orifices. The flow path matches Sun's flow controls and can be used in any flow control manifolds. Valves with the opposite direction of flow can be found under check valves with bypass orifices.
- Because these valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
