SUN HYDRAULICS
CNGDXAN
$108.91 USD
- SUN HYDRAULICS
- Material:CNGDXAN
- Model:CNGD-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXAN (CNGDXAN) is a specialized hydraulic valve designed to operate efficiently within a 3-port cavity system. This model allows for free flow from port 2 to port 1, while incorporating a customer-specified orifice to control the flow from port 1 to port 2, effectively blocking off port 3. This configuration makes it particularly useful in full-time regeneration circuits, allowing for full force development by the cylinder upon stopping. The bypass orifice feature is crucial as it reduces the rod end pressure to zero when there is no flow from the rod, enhancing operational efficiency and safety. The CNGDXAN valve is built to withstand corrosive environments, evident in its corrosion-resistant cartridge design. It supports a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of handling up to 60 gpm (240 L/min). The valve's dimensions include an orifice range of .016 - .218 in (0.4 - 5.5 mm), and it requires an installation torque of between 150 - 160 lbf ft (203 - 217 Nm). It also features Sun's floating style construction which minimizes internal parts binding\u2014a common issue due to excessive installation torque or variations in cavity/cartridge machining. This model weighs approximately 1.10 lbs (0.50 kg) and uses Viton seals for enhanced durability and performance under varying conditions. Its robust design coupled with precise engineering makes the CNGDXAN ideal for applications requiring reliable hydraulic flow management with an emphasis on preventing pressure build-up and ensuring smooth operational transitions.
The Sun Hydraulics CNGDXAN (CNGDXAN) is a specialized hydraulic valve designed to operate efficiently within a 3-port cavity system. This model allows for free flow from port 2 to port 1, while incorporating a customer-specified orifice to control the flow from port 1 to port 2, effectively blocking off port 3. This configuration makes it particularly useful in full-time regeneration circuits, allowing for full force development by the cylinder upon stopping. The bypass orifice feature is crucial as it reduces the rod end pressure to zero when there is no flow from the rod, enhancing operational efficiency and safety. The CNGDXAN valve is built to withstand corrosive environments, evident in its corrosion-resistant cartridge design. It supports a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of handling up to 60 gpm (240 L/min). The valve's dimensions include an orifice range of .016 - .218 in (0.4 - 5.5 mm), and it requires an installation torque of between 150 - 160 lbf ft (203 - 217 Nm). It also features Sun's floating style construction which minimizes internal parts binding\u2014a common issue due to excessive installation torque or variations in cavity/cartridge machining. This model weighs approximately 1.10 lbs (0.50 kg) and uses Viton seals for enhanced durability and performance under varying conditions. Its robust design coupled with precise engineering makes the CNGDXAN ideal for applications requiring reliable hydraulic flow management with an emphasis on preventing pressure build-up and ensuring smooth operational transitions.

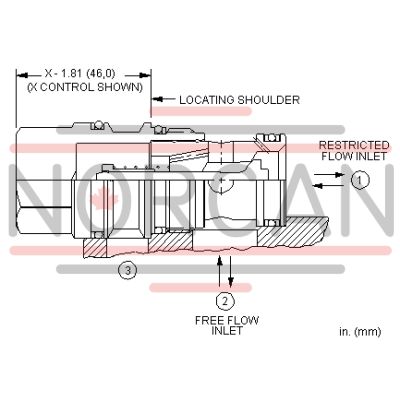

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
