SUN HYDRAULICS
CNGDXAV
$116.85 USD
- SUN HYDRAULICS
- Material:CNGDXAV
- Model:CNGD-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXAV (CNGDXAV) is a sophisticated hydraulic valve designed for specific applications requiring controlled flow and pressure management in hydraulic systems. This model features a unique freeflow, side-to-nose cheater check valve design with a bypass orifice. It functions primarily as a 2-port check valve within a 3-port cavity configuration, facilitating free flow from port 2 to port 1 while a customer-specified orifice regulates the flow from port 1 to port 2. Port 3 on this cartridge is blocked, enhancing the functionality and application flexibility of the valve. The CNGDXAV is particularly useful in full-time regeneration circuits, allowing full force development by cylinders at stopping while simultaneously dropping rod end pressure to zero when flow from the rod ceases. This capability makes it an essential component in applications demanding precise motion control and force management under varying operational conditions. Constructed to withstand corrosive environments, this model incorporates Sun's floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve supports a maximum operating pressure of up to 5000 psi (350 bar) and can handle capacities up to 60 gpm (240 L/min). Its robust design specifications include an orifice range of .016 - .218 inches (0.4 - 5.5 mm), ensuring versatile application across different system requirements. The CNGDXAV is also designed for easy installation with a specified valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 1.10 lbs (0.50 kg), it offers a compact yet powerful solution for advanced hydraulic systems requiring reliable, precise control mechanisms under challenging operational conditions.
The Sun Hydraulics CNGDXAV (CNGDXAV) is a sophisticated hydraulic valve designed for specific applications requiring controlled flow and pressure management in hydraulic systems. This model features a unique freeflow, side-to-nose cheater check valve design with a bypass orifice. It functions primarily as a 2-port check valve within a 3-port cavity configuration, facilitating free flow from port 2 to port 1 while a customer-specified orifice regulates the flow from port 1 to port 2. Port 3 on this cartridge is blocked, enhancing the functionality and application flexibility of the valve. The CNGDXAV is particularly useful in full-time regeneration circuits, allowing full force development by cylinders at stopping while simultaneously dropping rod end pressure to zero when flow from the rod ceases. This capability makes it an essential component in applications demanding precise motion control and force management under varying operational conditions. Constructed to withstand corrosive environments, this model incorporates Sun's floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve supports a maximum operating pressure of up to 5000 psi (350 bar) and can handle capacities up to 60 gpm (240 L/min). Its robust design specifications include an orifice range of .016 - .218 inches (0.4 - 5.5 mm), ensuring versatile application across different system requirements. The CNGDXAV is also designed for easy installation with a specified valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range of 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 1.10 lbs (0.50 kg), it offers a compact yet powerful solution for advanced hydraulic systems requiring reliable, precise control mechanisms under challenging operational conditions.

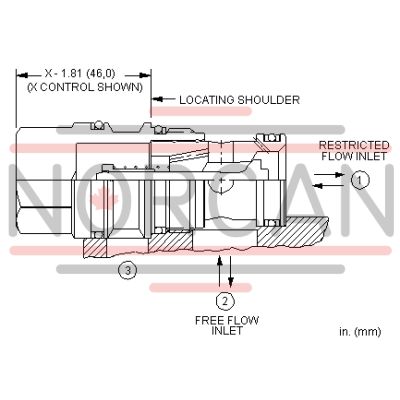

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
