SUN HYDRAULICS
CNGDXBV
$116.85 USD
- SUN HYDRAULICS
- Material:CNGDXBV
- Model:CNGD-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXBV (CNGDXBV) is a versatile hydraulic valve designed for specific applications where control over fluid flow direction and pressure is critical. This model is a free-flow, side-to-nose cheater check valve with a bypass orifice, effectively functioning as a 2-port check valve within a 3-port cavity configuration. It enables free flow from port 2 to port 1 while incorporating a customer-specified orifice to manage the flow from port 1 to port 2, with port 3 being blocked. Ideal for full-time regeneration circuits, the CNGDXBV allows full force development by the cylinder upon stopping, with the bypass orifice dropping rod end pressure to zero when flow ceases. This feature makes it particularly useful in applications requiring precise motion control and immediate stoppage without residual pressure buildup. The valve is constructed using corrosion-resistant materials, ensuring durability and reliability in corrosive environments. It also incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue in valves due to excessive installation torque or variations in cavity/cartridge machining. The CNGDXBV fits into a T17A cavity, belongs to Series 3, and can handle a maximum capacity of 60 gpm (240 L/min) with an operating pressure up to 5000 psi (350 bar). Its orifice range spans from .016 to .218 inches (0.4 to 5.5 mm), allowing for significant customization based on specific system requirements. The model has a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm), weighing approximately 1.10 lb (0.50 kg). For maintenance and repairs, it utilizes Viton seals as indicated by its seal kit cartridge specification Viton:990017006.
The Sun Hydraulics CNGDXBV (CNGDXBV) is a versatile hydraulic valve designed for specific applications where control over fluid flow direction and pressure is critical. This model is a free-flow, side-to-nose cheater check valve with a bypass orifice, effectively functioning as a 2-port check valve within a 3-port cavity configuration. It enables free flow from port 2 to port 1 while incorporating a customer-specified orifice to manage the flow from port 1 to port 2, with port 3 being blocked. Ideal for full-time regeneration circuits, the CNGDXBV allows full force development by the cylinder upon stopping, with the bypass orifice dropping rod end pressure to zero when flow ceases. This feature makes it particularly useful in applications requiring precise motion control and immediate stoppage without residual pressure buildup. The valve is constructed using corrosion-resistant materials, ensuring durability and reliability in corrosive environments. It also incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue in valves due to excessive installation torque or variations in cavity/cartridge machining. The CNGDXBV fits into a T17A cavity, belongs to Series 3, and can handle a maximum capacity of 60 gpm (240 L/min) with an operating pressure up to 5000 psi (350 bar). Its orifice range spans from .016 to .218 inches (0.4 to 5.5 mm), allowing for significant customization based on specific system requirements. The model has a hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 -160 lbf\u00b7ft (203 -217 Nm), weighing approximately 1.10 lb (0.50 kg). For maintenance and repairs, it utilizes Viton seals as indicated by its seal kit cartridge specification Viton:990017006.

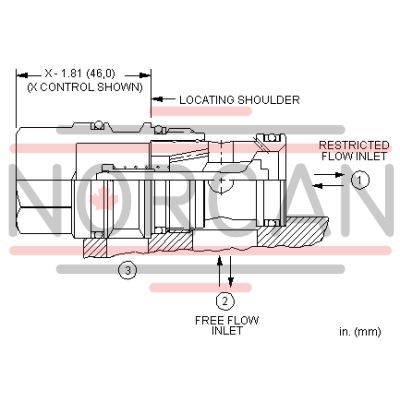

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
Show FAQ
