SUN HYDRAULICS
CNGDXCN
$106.93 USD
- SUN HYDRAULICS
- Material:CNGDXCN
- Model:CNGD-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXCN (CNGDXCN) is a versatile hydraulic valve designed to optimize flow control in a variety of applications. This model, part of the T17A cavity series, is engineered to function as a free flow, side-to-nose cheater check valve with an integrated bypass orifice. It uniquely facilitates free flow from port 2 to port 1 while allowing controlled flow from port 1 to port 2 through a customer-specified orifice size, ranging from 0.4 to 5.5 mm. Port 3 in this configuration is blocked, enhancing the directional control of the fluid. With a maximum capacity of 60 gpm (240 L/min) and an operating pressure limit of up to 5000 psi (350 bar), the CNGDXCN is built for high-performance applications. Its corrosion-resistant construction makes it suitable for use in environments where durability and reliability are paramount. The valve also incorporates Sun's floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model's dimensions include a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range between 150 -160 lbf\u00b7ft (203 -217 Nm), ensuring robust and secure installation. Weighing at approximately 1.10 lb (0.50 kg), it remains lightweight yet sturdy enough for demanding usage scenarios. Additionally, the CNGDXCN features Viton seals (kit number: 990017006) providing excellent resistance against high temperatures and chemical degradation, further extending its usability across various hydraulic systems where precision and reliability are crucial for both safety and functionality.
The Sun Hydraulics CNGDXCN (CNGDXCN) is a versatile hydraulic valve designed to optimize flow control in a variety of applications. This model, part of the T17A cavity series, is engineered to function as a free flow, side-to-nose cheater check valve with an integrated bypass orifice. It uniquely facilitates free flow from port 2 to port 1 while allowing controlled flow from port 1 to port 2 through a customer-specified orifice size, ranging from 0.4 to 5.5 mm. Port 3 in this configuration is blocked, enhancing the directional control of the fluid. With a maximum capacity of 60 gpm (240 L/min) and an operating pressure limit of up to 5000 psi (350 bar), the CNGDXCN is built for high-performance applications. Its corrosion-resistant construction makes it suitable for use in environments where durability and reliability are paramount. The valve also incorporates Sun's floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model's dimensions include a valve hex size of 1\u00bc inches (31.8 mm) and an installation torque range between 150 -160 lbf\u00b7ft (203 -217 Nm), ensuring robust and secure installation. Weighing at approximately 1.10 lb (0.50 kg), it remains lightweight yet sturdy enough for demanding usage scenarios. Additionally, the CNGDXCN features Viton seals (kit number: 990017006) providing excellent resistance against high temperatures and chemical degradation, further extending its usability across various hydraulic systems where precision and reliability are crucial for both safety and functionality.

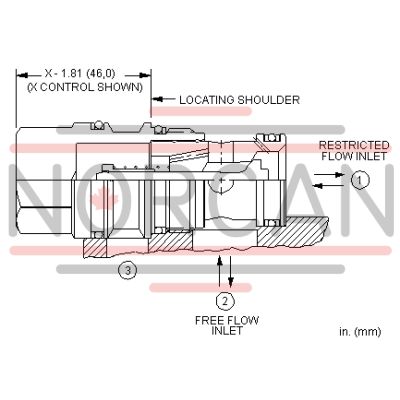

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
