SUN HYDRAULICS
CNGDXCV
$114.87 USD
- SUN HYDRAULICS
- Material:CNGDXCV
- Model:CNGD-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXCV (CNGDXCV) is a highly versatile hydraulic valve designed for specific fluid control operations. It features a unique configuration allowing free flow from port 2 to port 1, with an adjustable orifice managing flow in the opposite direction, from port 1 to port 2, while completely blocking off port 3. This setup makes it particularly useful in full-time regeneration circuits where it ensures full force development by a cylinder at a stop by dropping the rod end pressure to zero once the flow ceases. This model is built using Sun Hydraulics' floating style construction which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The CNGDXCV operates efficiently within a maximum pressure of 5000 psi (350 bar) and can handle up to 60 gpm (240 L/min), with an orifice range between .016 to .218 inches (0.4 to 5.5 mm). The valve's robust design includes a hex size of 1-1/4 inches (31.8 mm) and requires an installation torque of between 150 and 160 lbf ft (203 - 217 Nm). Weighing at just about 1.10 lb (0.50 kg), this model is both compact and easy to handle. For environments prone to corrosion, models with suffix AP or LH should be considered as indicated in the configuration section for enhanced durability. Each unit can be equipped with a Viton seal kit, ensuring reliable performance and longevity even under harsh conditions. This product exemplifies Sun Hydraulics' commitment to high-quality engineering and adaptability in hydraulic system components.
The Sun Hydraulics CNGDXCV (CNGDXCV) is a highly versatile hydraulic valve designed for specific fluid control operations. It features a unique configuration allowing free flow from port 2 to port 1, with an adjustable orifice managing flow in the opposite direction, from port 1 to port 2, while completely blocking off port 3. This setup makes it particularly useful in full-time regeneration circuits where it ensures full force development by a cylinder at a stop by dropping the rod end pressure to zero once the flow ceases. This model is built using Sun Hydraulics' floating style construction which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The CNGDXCV operates efficiently within a maximum pressure of 5000 psi (350 bar) and can handle up to 60 gpm (240 L/min), with an orifice range between .016 to .218 inches (0.4 to 5.5 mm). The valve's robust design includes a hex size of 1-1/4 inches (31.8 mm) and requires an installation torque of between 150 and 160 lbf ft (203 - 217 Nm). Weighing at just about 1.10 lb (0.50 kg), this model is both compact and easy to handle. For environments prone to corrosion, models with suffix AP or LH should be considered as indicated in the configuration section for enhanced durability. Each unit can be equipped with a Viton seal kit, ensuring reliable performance and longevity even under harsh conditions. This product exemplifies Sun Hydraulics' commitment to high-quality engineering and adaptability in hydraulic system components.

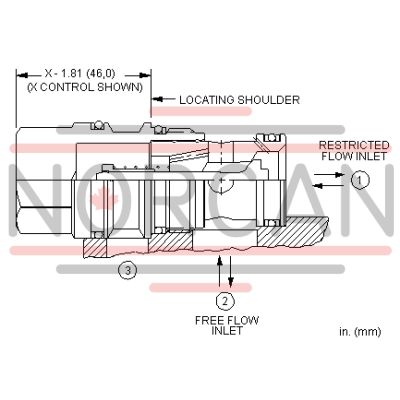

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
