SUN HYDRAULICS
CNGDXDV
$116.85 USD
- SUN HYDRAULICS
- Material:CNGDXDV
- Model:CNGD-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXDV (CNGDXDV) is a highly specialized hydraulic valve designed for specific applications requiring precise fluid control. This valve is a freeflow, side-to-nose cheater check valve with a bypass orifice, allowing it to function as a 2-port check valve in a 3-port cavity configuration. It permits free flow from port 2 to port 1, while the customer-specified orifice controls flow from port 1 to port 2, with port 3 being blocked off. Ideal for use in full-time regeneration circuits, the CNGDXDV enables full force development by the cylinder upon stopping. The bypass orifice uniquely drops rod end pressure to zero when flow from the rod ceases, enhancing operational safety and efficiency. The valve's construction incorporates Sun's floating style design which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key technical specifications of the CNGDXDV include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 60 gpm (240 L/min). The orifice range spans from .016 to .218 inches (0.4 to 5.5 mm), accommodating various application requirements. Additionally, the model features corrosion-resistant options suitable for harsh environments, indicated by model code suffixes AP or LH. With its robust design and precise fluid control capabilities, the Sun Hydraulics CNGDXDV valve is an essential component for systems requiring reliable and efficient hydraulic performance under varying operational conditions.
The Sun Hydraulics CNGDXDV (CNGDXDV) is a highly specialized hydraulic valve designed for specific applications requiring precise fluid control. This valve is a freeflow, side-to-nose cheater check valve with a bypass orifice, allowing it to function as a 2-port check valve in a 3-port cavity configuration. It permits free flow from port 2 to port 1, while the customer-specified orifice controls flow from port 1 to port 2, with port 3 being blocked off. Ideal for use in full-time regeneration circuits, the CNGDXDV enables full force development by the cylinder upon stopping. The bypass orifice uniquely drops rod end pressure to zero when flow from the rod ceases, enhancing operational safety and efficiency. The valve's construction incorporates Sun's floating style design which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. Key technical specifications of the CNGDXDV include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 60 gpm (240 L/min). The orifice range spans from .016 to .218 inches (0.4 to 5.5 mm), accommodating various application requirements. Additionally, the model features corrosion-resistant options suitable for harsh environments, indicated by model code suffixes AP or LH. With its robust design and precise fluid control capabilities, the Sun Hydraulics CNGDXDV valve is an essential component for systems requiring reliable and efficient hydraulic performance under varying operational conditions.

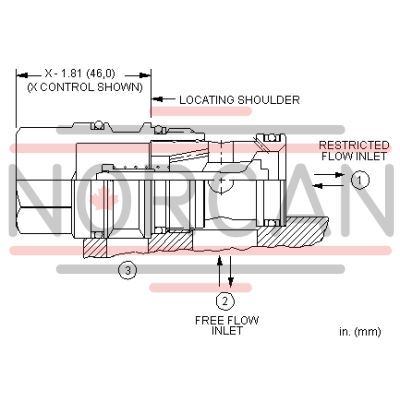

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
