SUN HYDRAULICS
CNGDXZN
$110.90 USD
- SUN HYDRAULICS
- Material:CNGDXZN
- Model:CNGD-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXZN (CNGDXZN) is a highly specialized hydraulic valve designed for specific applications requiring controlled flow and pressure management in hydraulic systems. This valve features a unique freeflow, side-to-nose cheater check configuration with a bypass orifice, making it effectively a 2-port check valve functioning within a 3-port cavity design. It facilitates free flow from port 2 to port 1, while the bypass orifice meticulously controls the flow from port 1 to port 2, with port 3 remaining blocked. Engineered for full-time regeneration circuits, the CNGDXZN allows hydraulic cylinders to develop full force upon stopping. The innovative design of the bypass orifice significantly reduces rod end pressure to zero once the flow ceases, enhancing system efficiency and safety. Furthermore, this model is built with Sun Hydraulics' floating style construction which minimizes internal part binding that might otherwise result from excessive installation torque or variations in cavity/cartridge machining. The valve is suitable for handling volumes up to 60 gpm (240 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). Its configuration options include various orifice sizes ranging from .016 to .218 inches (0.4 to 5.5 mm), allowing for precise customization based on specific application requirements. Additionally, the CNGDXZN model is designed for easy installation with a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 \u2013160 lbf\u00b7ft (203 \u2013217 Nm). It also features robust corrosion resistance, vital for operations in corrosive environments, ensuring long-term durability and reliability in challenging conditions.
The Sun Hydraulics CNGDXZN (CNGDXZN) is a highly specialized hydraulic valve designed for specific applications requiring controlled flow and pressure management in hydraulic systems. This valve features a unique freeflow, side-to-nose cheater check configuration with a bypass orifice, making it effectively a 2-port check valve functioning within a 3-port cavity design. It facilitates free flow from port 2 to port 1, while the bypass orifice meticulously controls the flow from port 1 to port 2, with port 3 remaining blocked. Engineered for full-time regeneration circuits, the CNGDXZN allows hydraulic cylinders to develop full force upon stopping. The innovative design of the bypass orifice significantly reduces rod end pressure to zero once the flow ceases, enhancing system efficiency and safety. Furthermore, this model is built with Sun Hydraulics' floating style construction which minimizes internal part binding that might otherwise result from excessive installation torque or variations in cavity/cartridge machining. The valve is suitable for handling volumes up to 60 gpm (240 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). Its configuration options include various orifice sizes ranging from .016 to .218 inches (0.4 to 5.5 mm), allowing for precise customization based on specific application requirements. Additionally, the CNGDXZN model is designed for easy installation with a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 \u2013160 lbf\u00b7ft (203 \u2013217 Nm). It also features robust corrosion resistance, vital for operations in corrosive environments, ensuring long-term durability and reliability in challenging conditions.

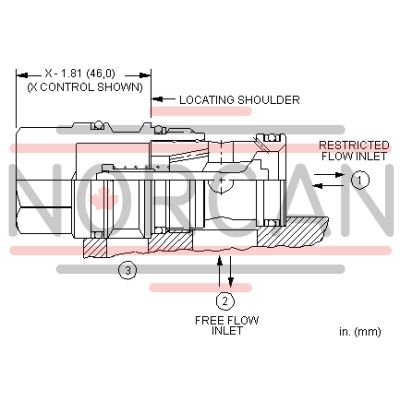

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
