SUN HYDRAULICS
CNGDXZV
$118.84 USD
- SUN HYDRAULICS
- Material:CNGDXZV
- Model:CNGD-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXZV (CNGDXZV) is a highly specialized hydraulic valve designed for efficient operation in various fluid control applications. This model, featuring a unique 3-port cavity configuration, primarily functions as a 2-port check valve while incorporating a bypass orifice that controls the flow from port 1 to port 2. The free flow from port 2 to port 1 is unimpeded, enhancing operational efficiency and response times in systems where this directional flow is required. The valve's design includes a blocked-off port 3, which is integral in scenarios such as full-time regeneration circuits. In these applications, the CNGDXZV allows for the development of full force by the cylinder upon stopping, with the bypass orifice effectively reducing the rod end pressure to zero once the flow ceases. This capability is crucial for maintaining system integrity and performance under varying load conditions. Constructed to withstand harsh environments, this valve utilizes corrosion-resistant materials suited for corrosive settings. Its robust design also features Sun's floating style construction which minimizes internal parts binding\u2014a common issue resulting from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 60 gpm (240 L/min). The CNGDXZV accommodates an orifice range from .016 to .218 inches (0.4 to 5.5 mm), ensuring versatility across different hydraulic setups. Installation requires specific torque settings between 150 - 160 lbf ft (203 - 217 Nm), and it has a compact model weight of approximately 1.10 lb (0.50 kg). For maintenance and repairs, Viton seal kits are available under part number: 990017006.
The Sun Hydraulics CNGDXZV (CNGDXZV) is a highly specialized hydraulic valve designed for efficient operation in various fluid control applications. This model, featuring a unique 3-port cavity configuration, primarily functions as a 2-port check valve while incorporating a bypass orifice that controls the flow from port 1 to port 2. The free flow from port 2 to port 1 is unimpeded, enhancing operational efficiency and response times in systems where this directional flow is required. The valve's design includes a blocked-off port 3, which is integral in scenarios such as full-time regeneration circuits. In these applications, the CNGDXZV allows for the development of full force by the cylinder upon stopping, with the bypass orifice effectively reducing the rod end pressure to zero once the flow ceases. This capability is crucial for maintaining system integrity and performance under varying load conditions. Constructed to withstand harsh environments, this valve utilizes corrosion-resistant materials suited for corrosive settings. Its robust design also features Sun's floating style construction which minimizes internal parts binding\u2014a common issue resulting from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 60 gpm (240 L/min). The CNGDXZV accommodates an orifice range from .016 to .218 inches (0.4 to 5.5 mm), ensuring versatility across different hydraulic setups. Installation requires specific torque settings between 150 - 160 lbf ft (203 - 217 Nm), and it has a compact model weight of approximately 1.10 lb (0.50 kg). For maintenance and repairs, Viton seal kits are available under part number: 990017006.

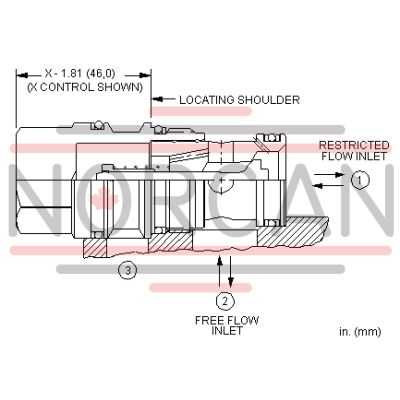

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
