SUN HYDRAULICS
CNJCXAV
$182.08 USD
- SUN HYDRAULICS
- Material:CNJCXAV
- Model:CNJC-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXAV (CNJCXAV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This model features a unique free flow from port 1 to port 2, with a customer-specified orifice that restricts flow in the reverse direction from port 2 to port 1. The specified orifice diameter, which ranges from 0.016 to 0.354 inches (0.4 to 9 mm), is clearly stamped on one of the hex faces of the cartridge, ensuring easy identification and compliance with specific system requirements. The CNJCXAV valve is designed using Sun Hydraulics' floating style construction which minimizes potential internal binding due to excessive installation torque or variations in cavity/cartridge machining\u2014enhancing reliability and performance consistency. The valve's configuration allows for a maximum flow capacity of up to 120 gpm (480 L/min), making it suitable for a wide range of fluid dynamics applications. Constructed to be corrosion-resistant, this model is particularly suited for environments where durability and longevity are critical. The valve installation requires a torque between 350 and 375 lbf ft (474-508 Nm), ensuring secure and stable placement within hydraulic systems. The seal kit for this cartridge uses Viton material (part number: 990018006), known for its high performance under extreme conditions. Overall, the Sun Hydraulics CNJCXAV check valve offers robust performance and reliability for hydraulic systems requiring precise control over fluid flow direction and pressure handling capabilities.
The Sun Hydraulics CNJCXAV (CNJCXAV) is a versatile hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi or 350 bar at ports 1 and 2. This model features a unique free flow from port 1 to port 2, with a customer-specified orifice that restricts flow in the reverse direction from port 2 to port 1. The specified orifice diameter, which ranges from 0.016 to 0.354 inches (0.4 to 9 mm), is clearly stamped on one of the hex faces of the cartridge, ensuring easy identification and compliance with specific system requirements. The CNJCXAV valve is designed using Sun Hydraulics' floating style construction which minimizes potential internal binding due to excessive installation torque or variations in cavity/cartridge machining\u2014enhancing reliability and performance consistency. The valve's configuration allows for a maximum flow capacity of up to 120 gpm (480 L/min), making it suitable for a wide range of fluid dynamics applications. Constructed to be corrosion-resistant, this model is particularly suited for environments where durability and longevity are critical. The valve installation requires a torque between 350 and 375 lbf ft (474-508 Nm), ensuring secure and stable placement within hydraulic systems. The seal kit for this cartridge uses Viton material (part number: 990018006), known for its high performance under extreme conditions. Overall, the Sun Hydraulics CNJCXAV check valve offers robust performance and reliability for hydraulic systems requiring precise control over fluid flow direction and pressure handling capabilities.

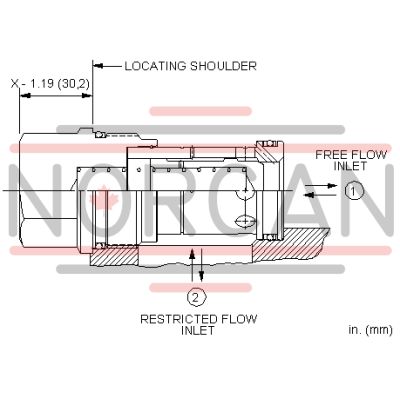

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
