SUN HYDRAULICS
CNJCXCV
$180.09 USD
- SUN HYDRAULICS
- Material:CNJCXCV
- Model:CNJC-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXCV (CNJCXCV) is a high-performance check valve designed for hydraulic applications requiring efficient flow control and reliability under high pressure. This valve features a free flow from port 1 to port 2, while a customer-specified orifice restricts flow from port 2 to port 1, ensuring precise control over fluid movement. The orifice range of this model spans from 0.4 mm to 9 mm, allowing for customization based on specific system requirements. Rated for up to 5000 psi (350 bar) at both ports, the CNJCXCV is built to handle demanding conditions. It incorporates Sun Hydraulics' floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve's operational stability and longevity. The valve's body is corrosion-resistant, making it suitable for use in environments where corrosive elements are present. The model code suffixes AP or LH indicate specific configurations designed for such conditions. For ease of identification and maintenance, the specified orifice diameter is stamped on one of the cartridge\u2019s hex faces. With a maximum capacity of 120 gpm (480 L/min), the CNJCXCV is capable of accommodating substantial flow rates, making it an ideal choice for a wide range of hydraulic circuits. Additionally, its compatibility with T18A cavity and Series 4 frame size ensures versatility and ease of integration into existing systems. Installation specifications include a hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 -375 lbf ft (474 -508 Nm), ensuring secure and straightforward setup.
The Sun Hydraulics CNJCXCV (CNJCXCV) is a high-performance check valve designed for hydraulic applications requiring efficient flow control and reliability under high pressure. This valve features a free flow from port 1 to port 2, while a customer-specified orifice restricts flow from port 2 to port 1, ensuring precise control over fluid movement. The orifice range of this model spans from 0.4 mm to 9 mm, allowing for customization based on specific system requirements. Rated for up to 5000 psi (350 bar) at both ports, the CNJCXCV is built to handle demanding conditions. It incorporates Sun Hydraulics' floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve's operational stability and longevity. The valve's body is corrosion-resistant, making it suitable for use in environments where corrosive elements are present. The model code suffixes AP or LH indicate specific configurations designed for such conditions. For ease of identification and maintenance, the specified orifice diameter is stamped on one of the cartridge\u2019s hex faces. With a maximum capacity of 120 gpm (480 L/min), the CNJCXCV is capable of accommodating substantial flow rates, making it an ideal choice for a wide range of hydraulic circuits. Additionally, its compatibility with T18A cavity and Series 4 frame size ensures versatility and ease of integration into existing systems. Installation specifications include a hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 -375 lbf ft (474 -508 Nm), ensuring secure and straightforward setup.

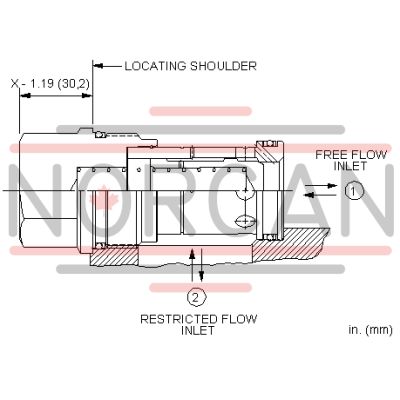

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
